VISHAYDatasheet (PDF)

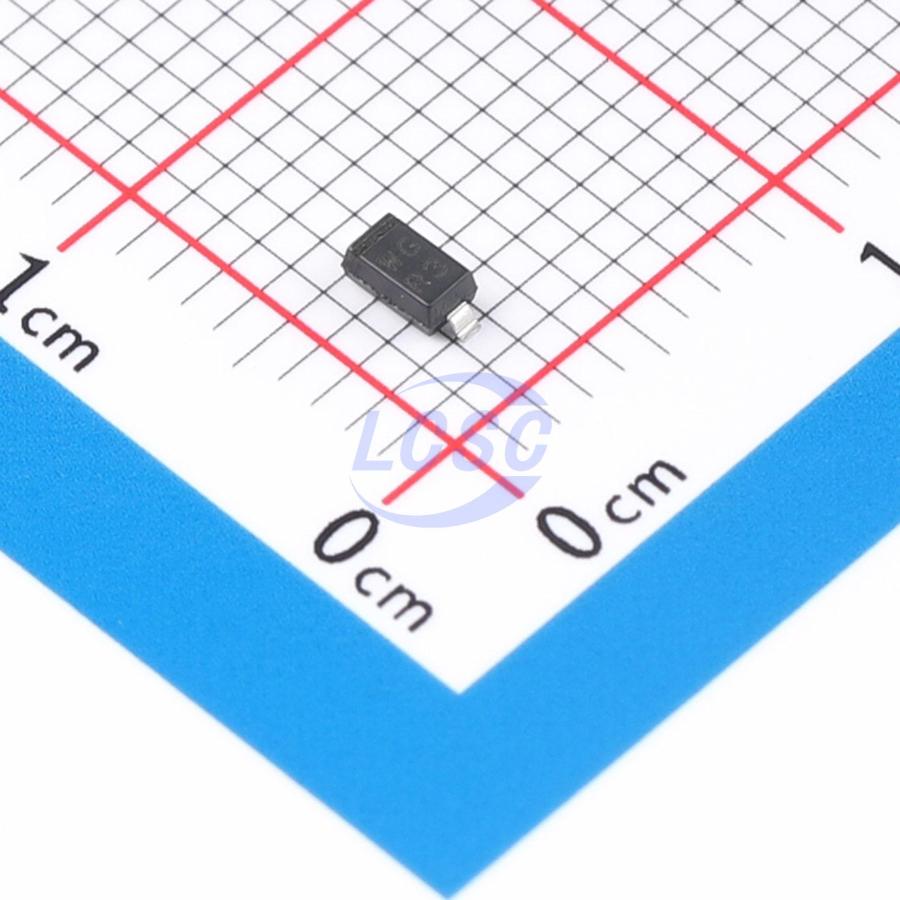

BZT52B10-E3-08
Zener Diode Independent 10V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 10V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B10-E3-08
- Store part #
- C5583182
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
370 in stock
#C5583182
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.06 | ₹76.06 |
| 10+ | ₹61.72 | ₹617.20 |
| 30+ | ₹54.76 | ₹1,642.80 |
| 100+ | ₹47.59 | ₹4,759.00 |
| 500+ | ₹43.46 | ₹21,730.00 |
| 1,000+ | ₹41.29 | ₹41,290.00 |
1 × ₹76.06
₹76.06
excl. GST
₹89.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52B10-E3-08
₹76.06 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@7.5V
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 9.8V~10.2V
- Zener Voltage(Nom)
- 10V
- Impedance(Zzk)
- 70Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV, Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C10-E3-08#C5566143VISHAY · SOD-123 | VISHAY | SOD-123 | 160 | ₹5.95 · 160 in stock | View |
 | MM1Z10BW#C2856899JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 250 | ₹2.41 · 250 in stock | View |
 | TPZ10VC-123#C46472897TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,500 | ₹2.67 · 2,500 in stock | View |
 | MM1Z10B#C382789Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 6,550 | ₹2.42 · 6,550 in stock | View |
 | MM1Z10BW#C4749086Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 300 | ₹1.96 · 300 in stock | View |
