VISHAYDatasheet (PDF)

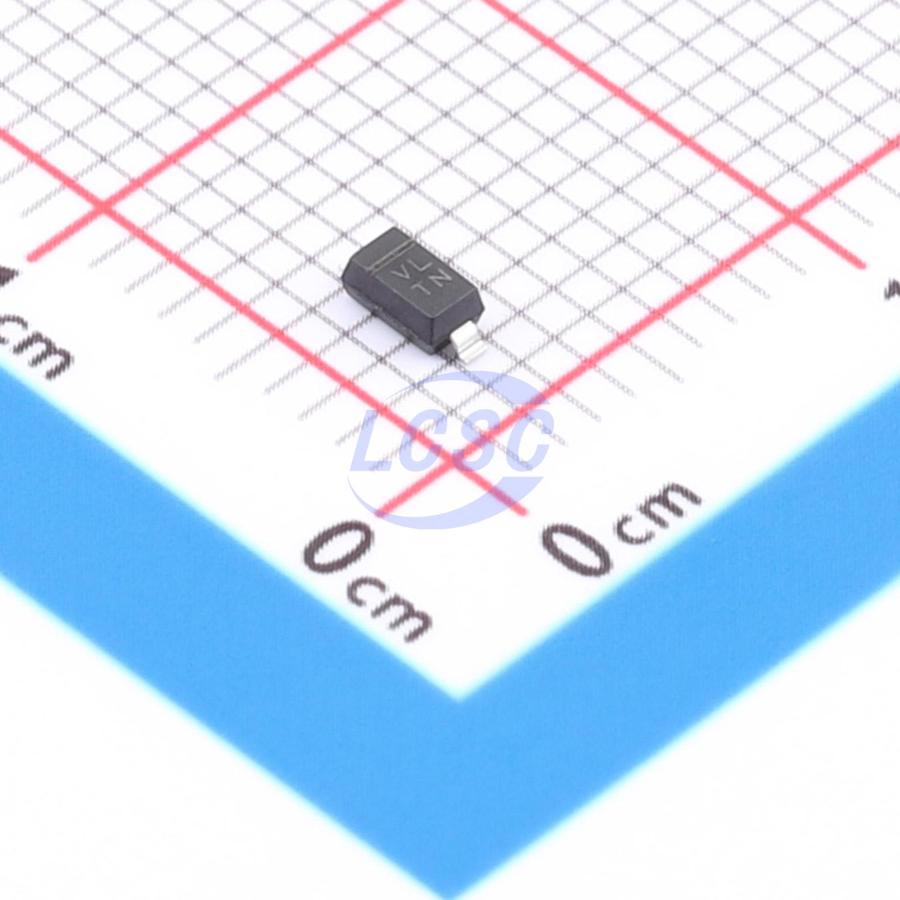

BZT52B15-E3-18
Zener Diode Independent 15V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 15V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B15-E3-18
- Store part #
- C7223724
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C7223724
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.66 | ₹158.30 |
| 50+ | ₹25.07 | ₹1,253.50 |
| 150+ | ₹22.24 | ₹3,336.00 |
| 500+ | ₹18.72 | ₹9,360.00 |
| 2,500+ | ₹17.15 | ₹42,875.00 |
| 5,000+ | ₹16.21 | ₹81,050.00 |
5 × ₹31.66
₹158.30
excl. GST
₹186.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52B15-E3-18
₹158.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 14.7V~15.3V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 4.227 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B15-TP#C668886MCC · SOD-123 | MCC | SOD-123 | On request | ₹8.03 · 0 in stock | View |
 | BZT52B15#C7427937NH · SOD-123 | NH | SOD-123 | 950 | ₹2.08 · 950 in stock | View |
 | MM1Z15BW#C20624191YFW · SOD-123 | YFW | SOD-123 | 3,140 | ₹3.45 · 3,140 in stock | View |
 | MM1Z15BW#C3019286Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,750 | ₹2.50 · 2,750 in stock | View |
 | MM1Z15B#C438313Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 8,750 | ₹2.50 · 8,750 in stock | View |
