VISHAYDatasheet (PDF)

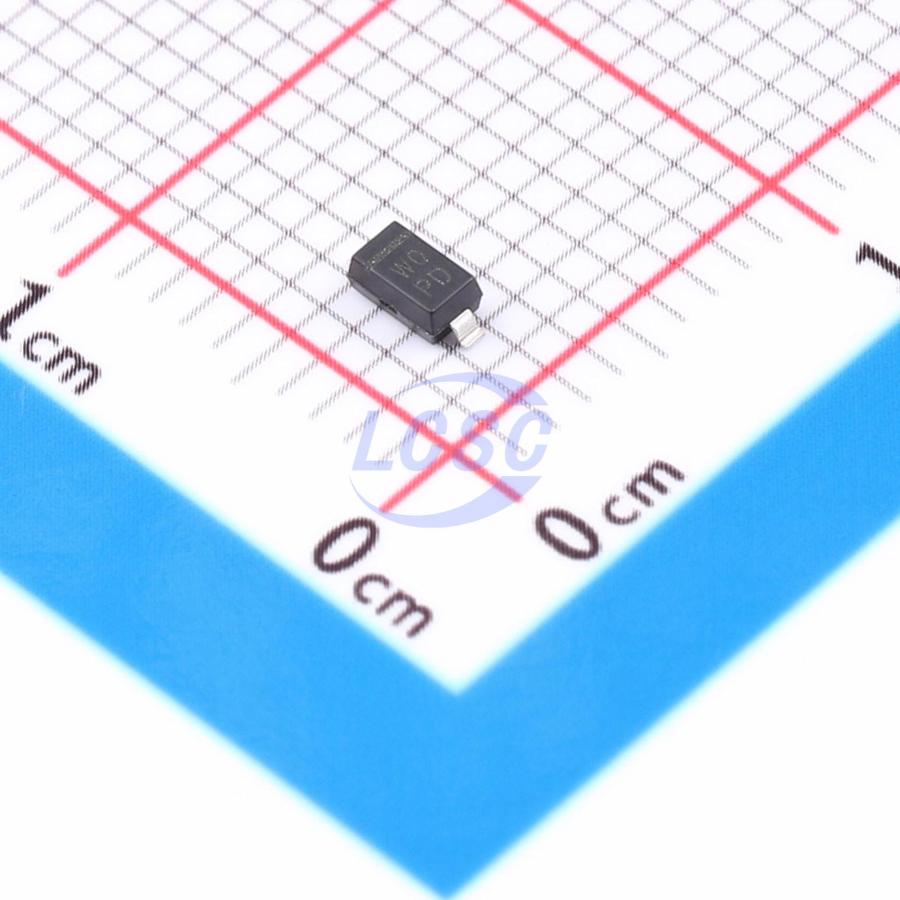

BZT52B20-E3-08
1 Independent 19.6V~20.4V 20V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B20-E3-08
- Store part #
- C3730306
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,520 in stock
#C3730306
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.63 | ₹33.15 |
| 50+ | ₹6.47 | ₹323.50 |
| 150+ | ₹6.38 | ₹957.00 |
| 500+ | ₹6.27 | ₹3,135.00 |
5 × ₹6.63
₹33.15
excl. GST
₹39.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52B20-E3-08
₹33.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@15V
- Impedance(Zzt)
- 50Ω
- Zener Voltage(Range)
- 19.6V~20.4V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 220Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV, Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B20#C7427940NH · SOD-123 | NH | SOD-123 | 2,150 | ₹2.12 · 2,150 in stock | View |
 | MM1Z20BW#C2856906JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 650 | ₹2.32 · 650 in stock | View |
 | MM1Z20B#C438315Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 2,950 | ₹2.58 · 2,950 in stock | View |
 | MM1Z20BW#C4749082Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 3,580 | ₹2.78 · 3,580 in stock | View |
 | MM1ZB20#C51822249CBI · SOD-123 | CBI | SOD-123 | 2,150 | ₹1.98 · 2,150 in stock | View |
