VISHAYDatasheet (PDF)

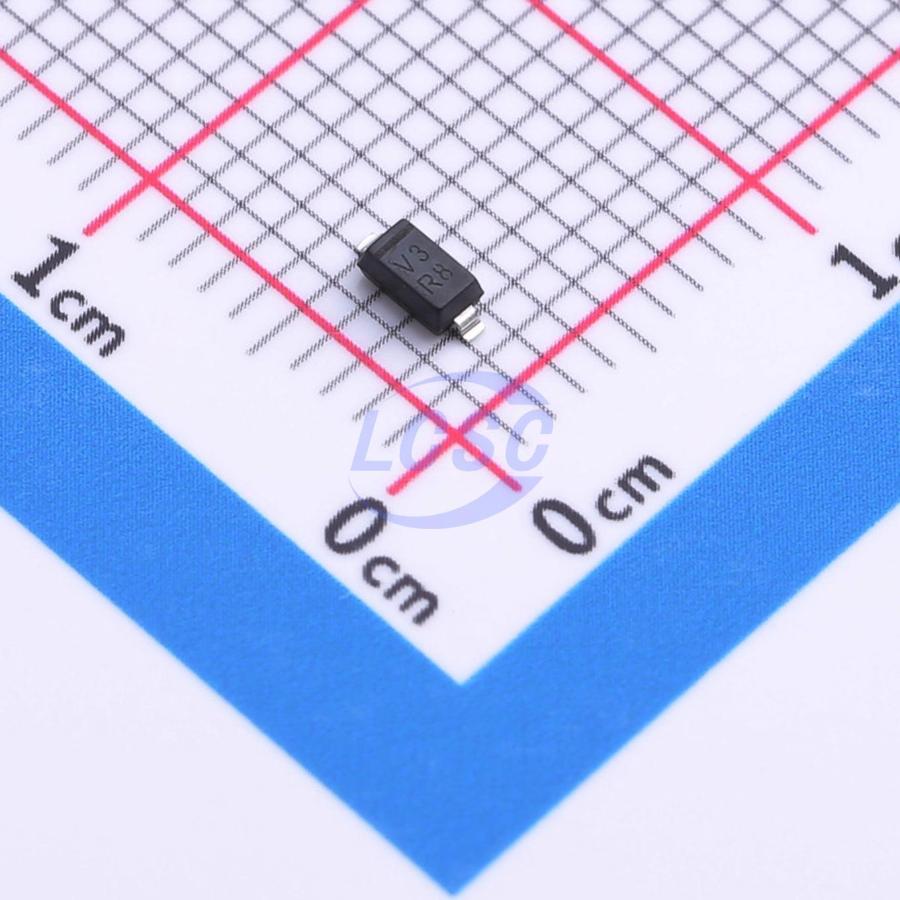

BZT52B3V0-E3-08
Zener Diode Independent 3V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52B3V0-E3-08
- Store part #
- C6870850
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C6870850
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.66 | ₹78.30 |
| 50+ | ₹12.53 | ₹626.50 |
| 150+ | ₹10.97 | ₹1,645.50 |
| 500+ | ₹9.79 | ₹4,895.00 |
| 3,000+ | ₹8.85 | ₹26,550.00 |
| 6,000+ | ₹8.37 | ₹50,220.00 |
5 × ₹15.66
₹78.30
excl. GST
₹92.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52B3V0-E3-08
₹78.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 10uA
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.94V~3.06V
- Zener Voltage(Nom)
- 3V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B3V0#C47283692TWGMC · SOD-123 | TWGMC | SOD-123 | 7,550 | ₹2.18 · 7,550 in stock | View |
 | BZT52-B3V0J#C550206Nexperia · SOD-123 | Nexperia | SOD-123 | 5 | ₹10.19 · 5 in stock | View |
 | MM1Z3V0W#C2856848JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 1,500 | ₹2.25 · 1,500 in stock | View |
 | BZT52C3V0Q#C2857069JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 3,900 | ₹2.50 · 3,900 in stock | View |
 | TPZ3V0C-123#C41431815TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,900 | ₹3.18 · 2,900 in stock | View |
