DIODESDatasheet (PDF)

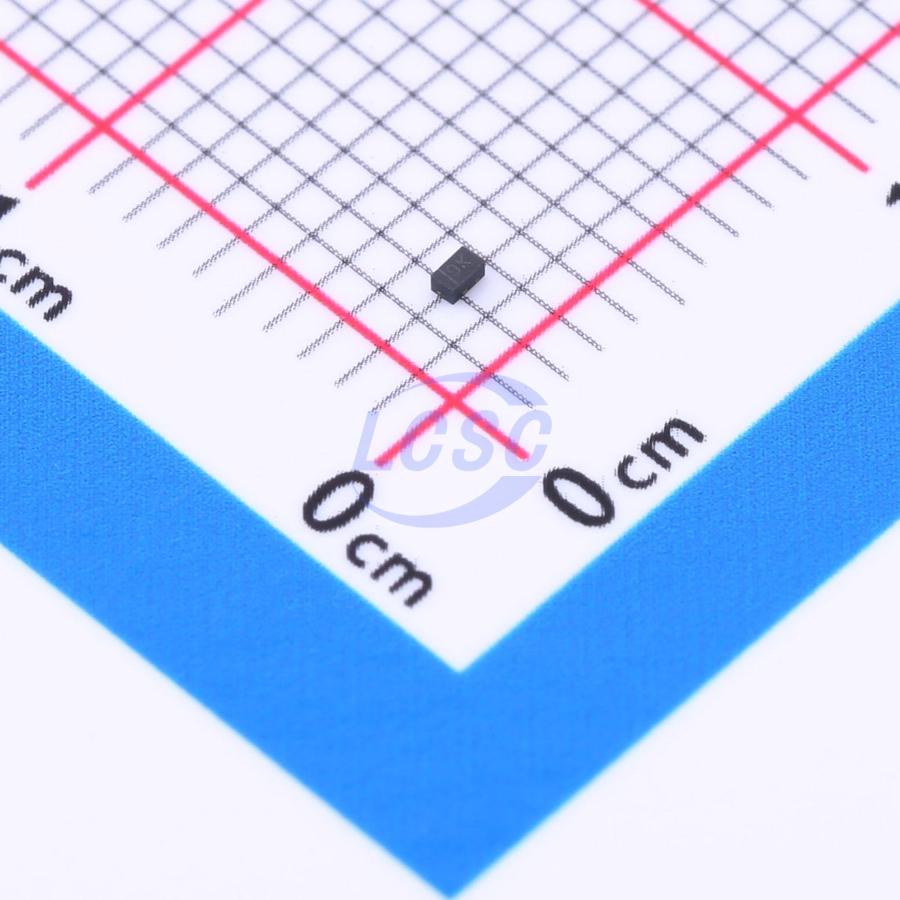

BZT52C13LP-7
Zener Diode 13V 250mW X1-Surface Mount DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
DIODE ZENER 13V 250mW X1-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C13LP-7
- Store part #
- C5248647
- Package / case
- X1-DFN1006-2
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C5248647
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.27 | ₹40.27 |
1 × ₹40.27
₹40.27
excl. GST
₹47.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
BZT52C13LP-7
₹40.27 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 250mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 12.4V~14.1V
- Zener Voltage(Nom)
- 13V
- Impedance(Zzk)
- 170Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
Key features
- Ultra-Small Leadless Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Lead Free By Design/ReHS Compliant
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C13LP-7B#C5381665DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 120 | ₹10.17 · 120 in stock | View |
 | BZT52C13LPQ-7#C5248648DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | 50 | ₹11.50 · 50 in stock | View |
 | BZX884B13#C7529005amsem · DFN1006-2L | amsem | DFN1006-2L | 5,950 | ₹2.58 · 5,950 in stock | View |
 | PZU13BL,315#C553607Nexperia · DFN1006-2 | Nexperia | DFN1006-2 | 9,960 | ₹5.12 · 9,960 in stock | View |
 | BN52C13#C48533884BORN · DFN1006-2 | BORN | DFN1006-2 | 8,380 | ₹3.19 · 8,380 in stock | View |
