VISHAYDatasheet (PDF)

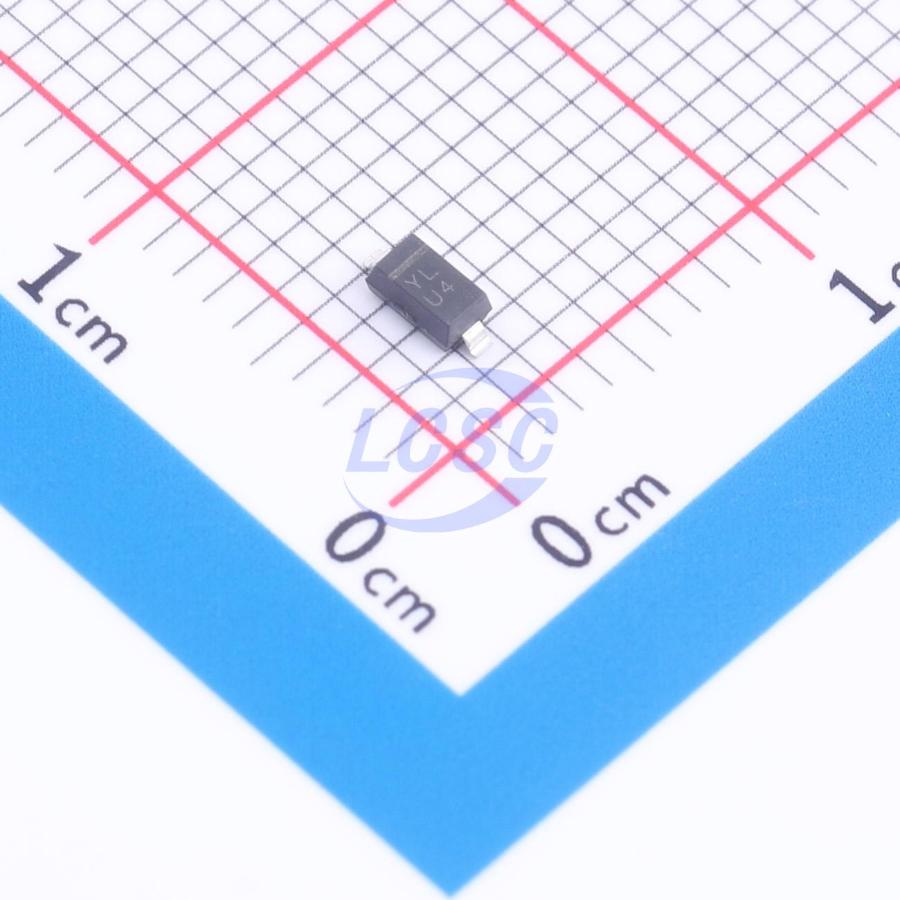

BZT52C15-HE3_A-08
1 Independent 14.25V~15.6V 15V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C15-HE3_A-08
- Store part #
- C20565041
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
266 in stock
#C20565041
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.18 | ₹100.18 |
| 10+ | ₹81.52 | ₹815.20 |
| 30+ | ₹72.21 | ₹2,166.30 |
| 100+ | ₹63.09 | ₹6,309.00 |
| 500+ | ₹57.68 | ₹28,840.00 |
| 1,000+ | ₹54.86 | ₹54,860.00 |
1 × ₹100.18
₹100.18
excl. GST
₹118.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
BZT52C15-HE3_A-08
₹100.18 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@11V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 14.25V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C15Q#C2857059JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 43,160 | ₹2.18 · 43,160 in stock | View |
 | BZT52C15#C7427962NH · SOD-123 | NH | SOD-123 | 3,500 | ₹1.91 · 3,500 in stock | View |
 | BZT52C15Q#C2942509YANGJIE · SOD-123 | YANGJIE | SOD-123 | 380 | ₹4.18 · 380 in stock | View |
 | MMSZ15T1G#C27754onsemi · SOD-123 | onsemi | SOD-123 | 32,940 | ₹6.10 · 32,940 in stock | View |
 | SZMMSZ15T1G#C462966onsemi · SOD-123 | onsemi | SOD-123 | 2,405 | ₹14.25 · 2,405 in stock | View |
