DIODESDatasheet (PDF)

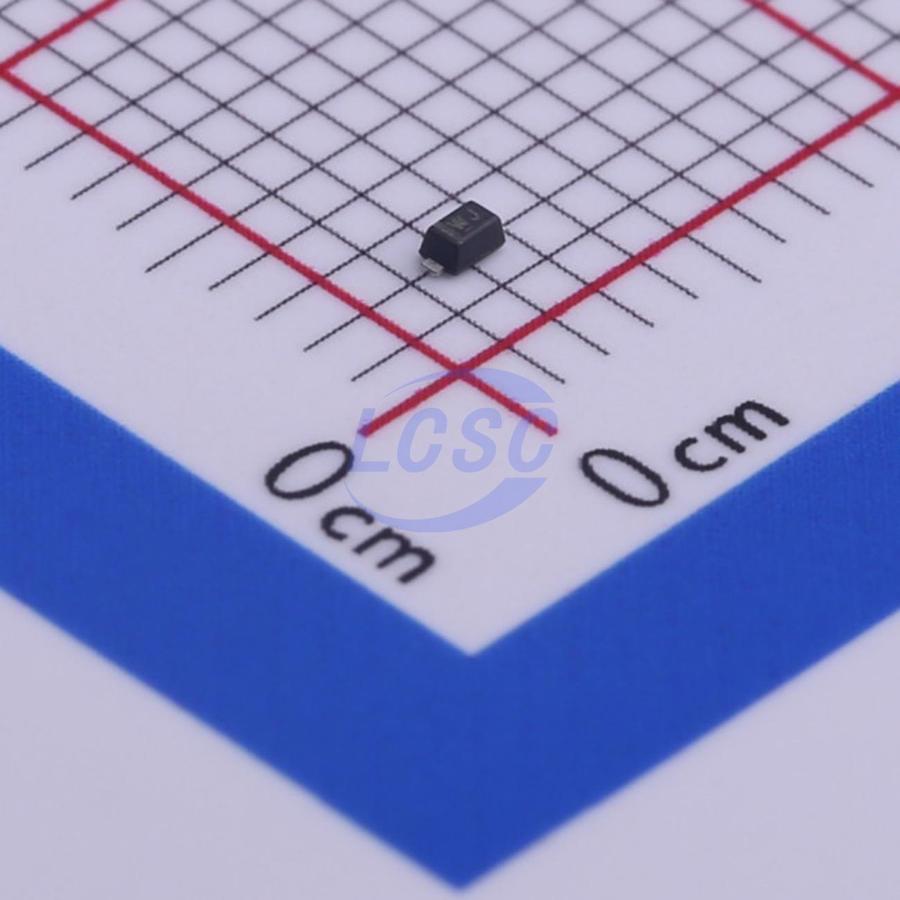

BZT52C15T-7
Zener Diode Independent 15V 300mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 15V 300mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C15T-7
- Store part #
- C460787
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C460787
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.62 | ₹78.10 |
| 50+ | ₹13.30 | ₹665.00 |
| 150+ | ₹12.13 | ₹1,819.50 |
| 500+ | ₹11.26 | ₹5,630.00 |
| 3,000+ | ₹10.56 | ₹31,680.00 |
| 6,000+ | ₹10.21 | ₹61,260.00 |
5 × ₹15.62
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C15T-7
₹78.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@10.5V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 13.8V~15.6V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Key features
- Small, Low Profile Surface Mount Package
- Flat Lead Package Design for Low Profile and High Power Dissipation
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC - Q101 Standards for High Reliability
- PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM5Z15V-LGE#C5157540LGE · SOD-523 | LGE | SOD-523 | 2,740 | ₹3.08 · 2,740 in stock | View |
 | BZX584C15#C51315215CBI · SOD-523 | CBI | SOD-523 | 2,550 | ₹2.06 · 2,550 in stock | View |
 | BZX584C15#C19077466R+O · SOD-523 | R+O | SOD-523 | 25,340 | ₹2.92 · 25,340 in stock | View |
 | BZX584C15#C2961205JSCJ · SOD-523 | JSCJ | SOD-523 | 54,920 | ₹4.48 · 54,920 in stock | View |
 | MM5Z15#C2990880ST(Semtech) · SOD-523 | ST(Semtech) | SOD-523 | 450 | ₹2.32 · 450 in stock | View |
