VISHAYDatasheet (PDF)

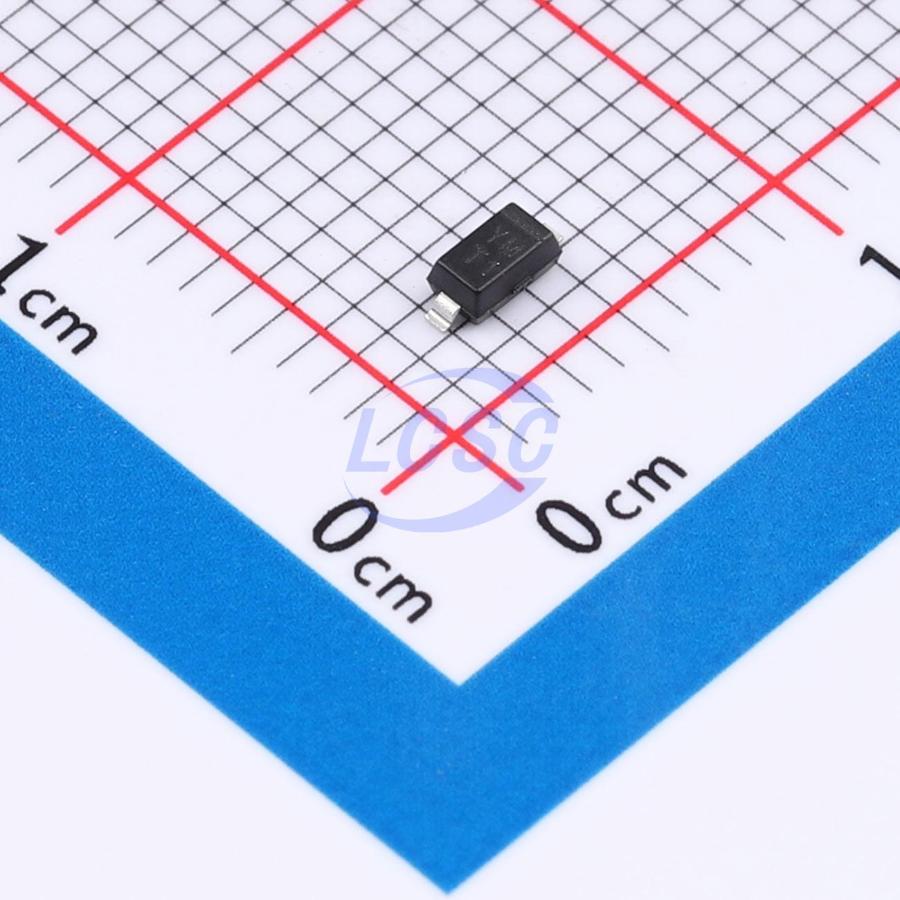

BZT52C16-E3-08
Zener Diode Independent 16V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 16V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C16-E3-08
- Store part #
- C3736909
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,790 in stock
#C3736909
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.30 | ₹91.50 |
| 50+ | ₹14.94 | ₹747.00 |
| 150+ | ₹13.27 | ₹1,990.50 |
| 500+ | ₹12.01 | ₹6,005.00 |
| 2,500+ | ₹11.01 | ₹27,525.00 |
| 5,000+ | ₹10.50 | ₹52,500.00 |
5 × ₹18.30
₹91.50
excl. GST
₹107.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C16-E3-08
₹91.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@12V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 15.3V~16.8V
- Zener Voltage(Nom)
- 16V
- Impedance(Zzk)
- 170Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.35 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV, Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52C16-HE3_A-08#C20563152VISHAY · SOD-123 | VISHAY | SOD-123 | 3,000 | ₹50.83 · 3,000 in stock | View | |
 | BZT52C16Q#C2857060JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 1,700 | ₹2.32 · 1,700 in stock | View |
 | BZT52C16#C54930263HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 5,050 | ₹0.860 · 5,050 in stock | View |
 | BZT52C16#C7427964NH · SOD-123 | NH | SOD-123 | 2,600 | ₹2.06 · 2,600 in stock | View |
 | MM1Z16#C123912Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 3,300 | ₹1.85 · 3,300 in stock | View |
