DIODESDatasheet (PDF)

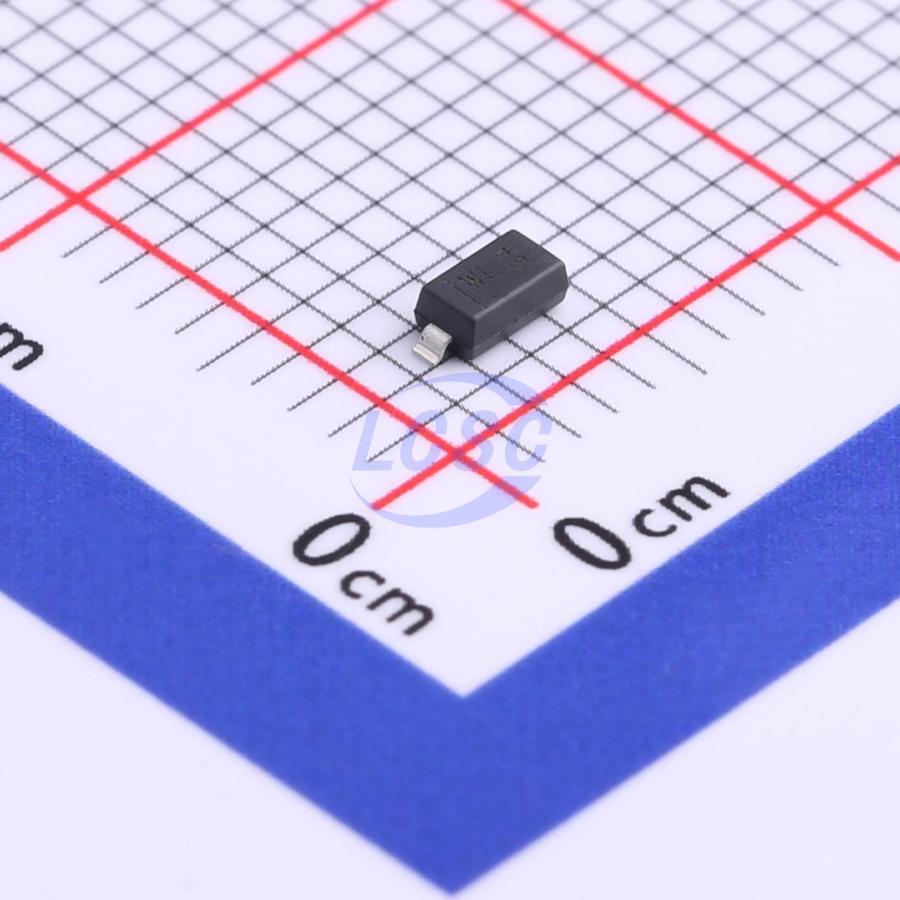

BZT52C18Q-7-F
Zener Diode 18V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 18V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C18Q-7-F
- Store part #
- C780793
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,240 in stock
#C780793
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.50 | ₹55.00 |
| 100+ | ₹4.34 | ₹434.00 |
| 300+ | ₹3.74 | ₹1,122.00 |
| 3,000+ | ₹3.31 | ₹9,930.00 |
| 6,000+ | ₹2.96 | ₹17,760.00 |
| 9,000+ | ₹2.78 | ₹25,020.00 |
10 × ₹5.50
₹55.00
excl. GST
₹64.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C18Q-7-F
₹55.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 225Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C18#C2827914Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 1,100 | ₹2.25 · 1,100 in stock | View |
 | BZT52C18#C541643AnBon · SOD-123 | AnBon | SOD-123 | 200 | ₹2.50 · 200 in stock | View |
 | BZT52C18#C19077414R+O · SOD-123 | R+O | SOD-123 | 7,64,600 | ₹2.33 · 7,64,600 in stock | View |
 | BZT52C18#C54930264HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 1,450 | ₹1.40 · 1,450 in stock | View |
 | BZT52C18-7-F#C192739DIODES · SOD-123 | DIODES | SOD-123 | 4,235 | ₹20.57 · 4,235 in stock | View |
