DIODESDatasheet (PDF)

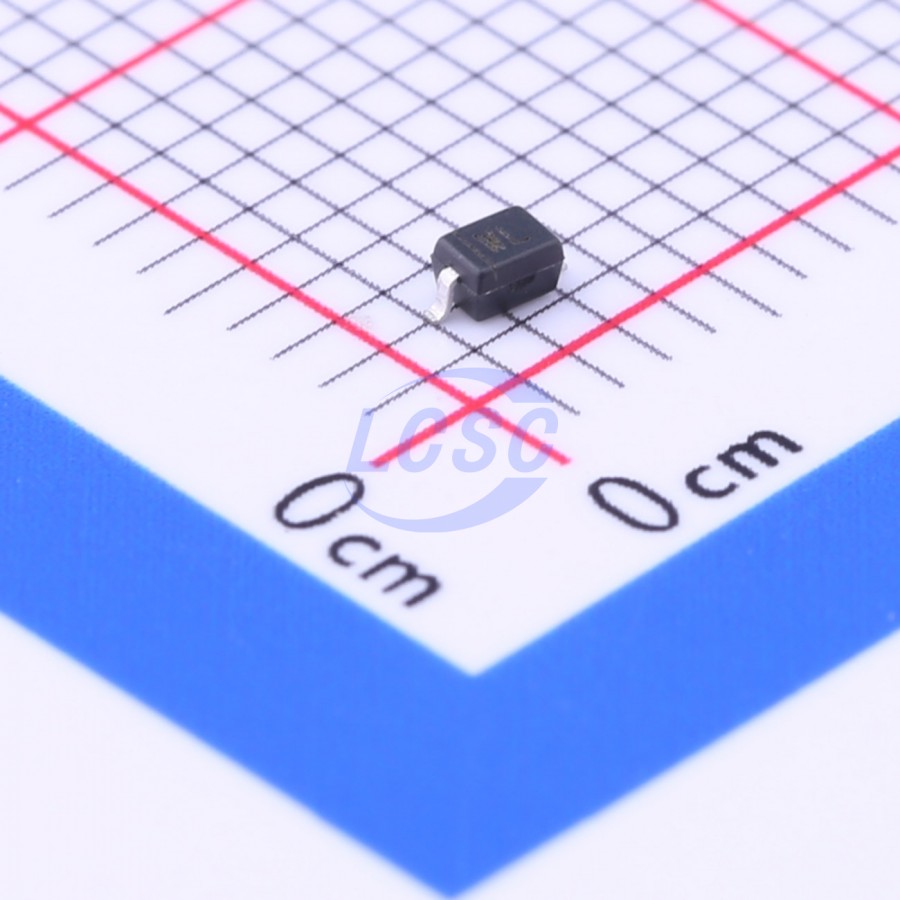

BZT52C18S-7-F
Zener Diode Independent 18V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 18V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C18S-7-F
- Store part #
- C260898
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,710 in stock
#C260898
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.22 | ₹82.20 |
| 100+ | ₹6.62 | ₹662.00 |
| 300+ | ₹5.82 | ₹1,746.00 |
| 3,000+ | ₹5.23 | ₹15,690.00 |
| 6,000+ | ₹4.74 | ₹28,440.00 |
| 9,000+ | ₹4.50 | ₹40,500.00 |
10 × ₹8.22
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C18S-7-F
₹82.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@12.6V
- Impedance(Zzt)
- 45Ω
- Zener Voltage(Range)
- 16.8V~19.1V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 225Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C18S#C545352LGE · SOD-323 | LGE | SOD-323 | 1,160 | ₹2.39 · 1,160 in stock | View |
 | BZT52C18S#C571392High Diode · SOD-323 | High Diode | SOD-323 | 2,520 | ₹2.67 · 2,520 in stock | View |
 | BZT52C18S-TP#C668895MCC · SOD-323 | MCC | SOD-323 | 10 | ₹6.85 · 10 in stock | View |
 | BZT52C18S#C19077450R+O · SOD-323 | R+O | SOD-323 | 2,72,400 | ₹2.34 · 2,72,400 in stock | View |
 | BZT52C18S#C22368940Wild Goose · SOD-323 | Wild Goose | SOD-323 | 2,500 | ₹1.47 · 2,500 in stock | View |
