DIODESDatasheet (PDF)

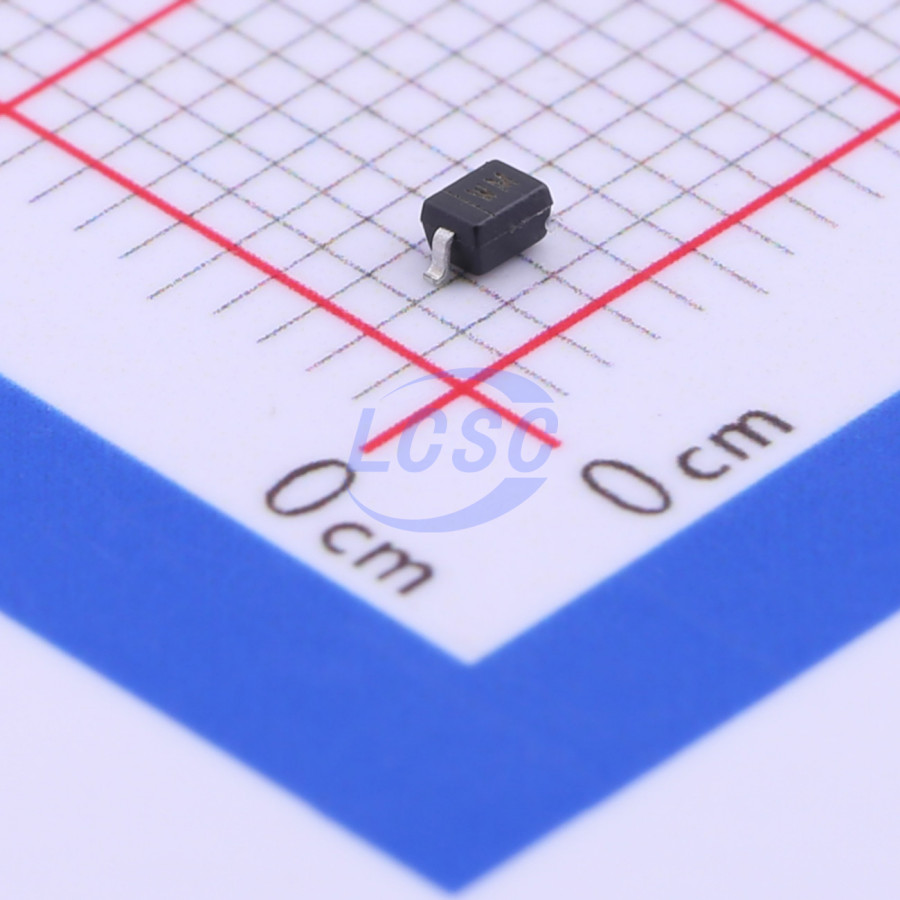

BZT52C20S-7-F
Zener Diode Independent 20V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 20V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C20S-7-F
- Store part #
- C362114
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
240 in stock
#C362114
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.02 | ₹40.40 |
| 200+ | ₹1.98 | ₹396.00 |
| 600+ | ₹1.96 | ₹1,176.00 |
| 3,000+ | ₹1.93 | ₹5,790.00 |
20 × ₹2.02
₹40.40
excl. GST
₹47.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C20S-7-F
₹40.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 100nA@14V
- Impedance(Zzt)
- 55Ω
- Zener Voltage(Range)
- 18.8V~21.2V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 225Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.05 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C20S#C571393High Diode · SOD-323 | High Diode | SOD-323 | 2,800 | ₹1.55 · 2,800 in stock | View |
 | BZT52C20SQ-7-F#C691212DIODES · SOD-323 | DIODES | SOD-323 | 5 | ₹6.42 · 5 in stock | View |
 | BZT52C20S#C699166YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,880 | ₹3.40 · 2,880 in stock | View |
 | BZT52C20S#C19077451R+O · SOD-323 | R+O | SOD-323 | 27,300 | ₹1.56 · 27,300 in stock | View |
| BZT52C20S#C22368941Wild Goose · SOD-323 | Wild Goose | SOD-323 | 2,950 | ₹1.47 · 2,950 in stock | View | |
