DIODESDatasheet (PDF)

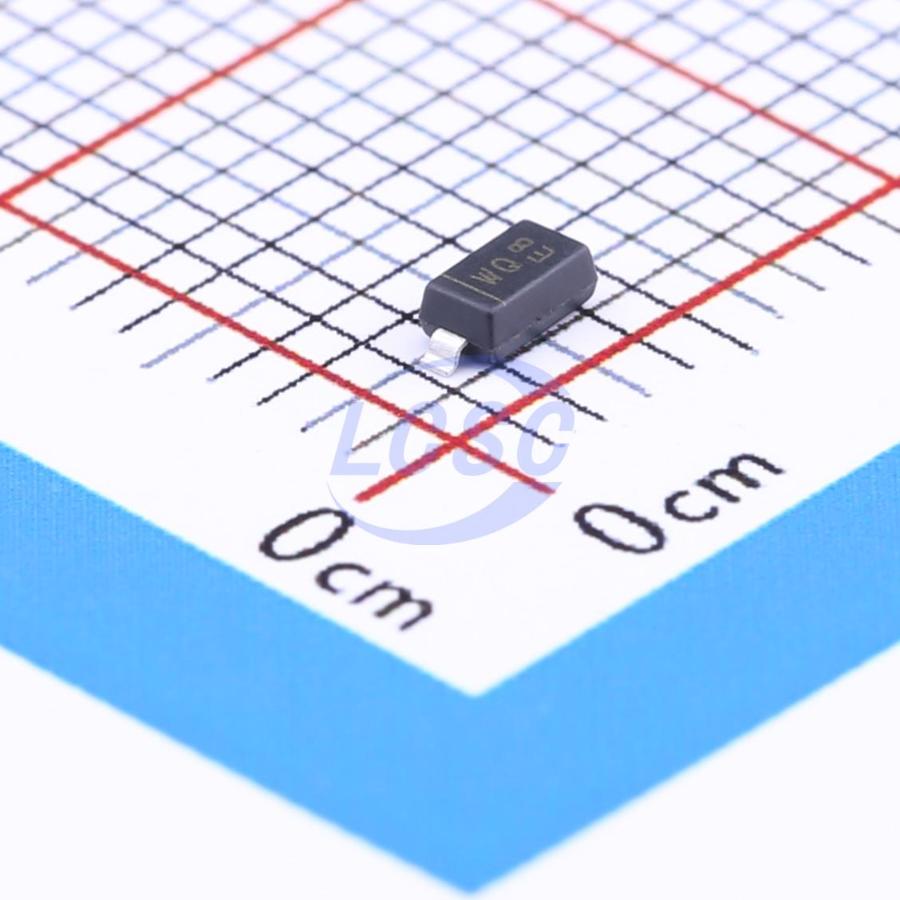

BZT52C30-7-F
Zener Diode Independent 30V 370mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 30V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C30-7-F
- Store part #
- C163721
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
275 in stock
#C163721
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹8.41 | ₹42.05 |
| 50+ | ₹8.28 | ₹414.00 |
| 150+ | ₹8.20 | ₹1,230.00 |
| 500+ | ₹8.11 | ₹4,055.00 |
5 × ₹8.41
₹42.05
excl. GST
₹49.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C30-7-F
₹42.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA@21V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 28V~32V
- Zener Voltage(Nom)
- 30V
- Impedance(Zzk)
- 300Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C30Q-7-F#C5248663DIODES · SOD-123 | DIODES | SOD-123 | 160 | ₹5.54 · 160 in stock | View |
 | BZT52C30#C213134FMS(Formosa Microsemi) · SOD-123 | FMS(Formosa Microsemi) | SOD-123 | 50 | ₹2.69 · 50 in stock | View |
 | BZT52C30-G RHG#C486137Taiwan Semiconductor · SOD-123 | Taiwan Semiconductor | SOD-123 | 180 | ₹4.59 · 180 in stock | View |
 | BZT52C30#C19077418R+O · SOD-123 | R+O | SOD-123 | 2,77,100 | ₹2.29 · 2,77,100 in stock | View |
 | BZT52C30#C54930419HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,200 | ₹1.40 · 2,200 in stock | View |
