DIODESDatasheet (PDF)

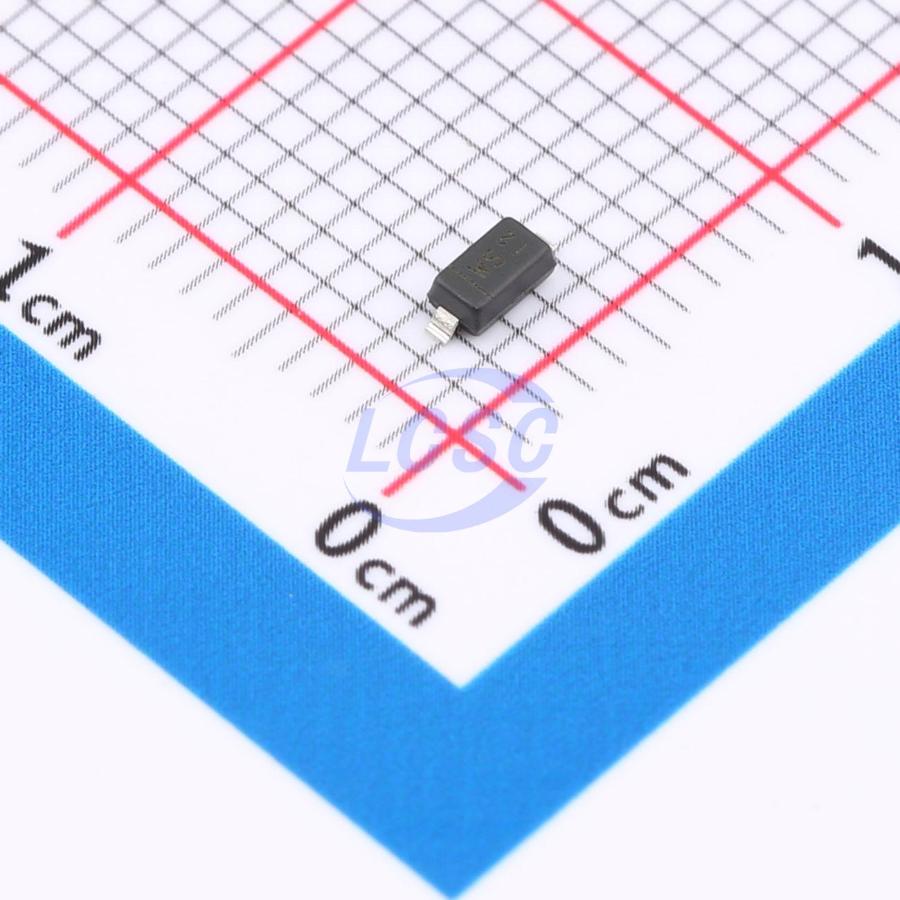

BZT52C36-7-F
Zener Diode Independent 36V 370mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 36V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C36-7-F
- Store part #
- C124189
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C124189
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹6.17 | ₹123.40 |
| 200+ | ₹5.04 | ₹1,008.00 |
| 600+ | ₹4.42 | ₹2,652.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 9,000+ | ₹3.72 | ₹33,480.00 |
| 21,000+ | ₹3.55 | ₹74,550.00 |
20 × ₹6.17
₹123.40
excl. GST
₹145.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C36-7-F
₹123.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 34V~38V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 350Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C36Q-7-F#C19949142DIODES · SOD-123 | DIODES | SOD-123 | 500 | ₹57.11 · 500 in stock | View |
 | BZT52C36#C2827902Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 2,700 | ₹2.29 · 2,700 in stock | View |
 | BZT52C36#C19077420R+O · SOD-123 | R+O | SOD-123 | 1,23,710 | ₹2.30 · 1,23,710 in stock | View |
 | BZT52C36#C54930421HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 3,000 | ₹1.43 · 3,000 in stock | View |
 | MMSZ5258BQ-13-F#C5244965DIODES · SOD-123 | DIODES | SOD-123 | 130 | ₹6.64 · 130 in stock | View |
