VISHAYDatasheet (PDF)

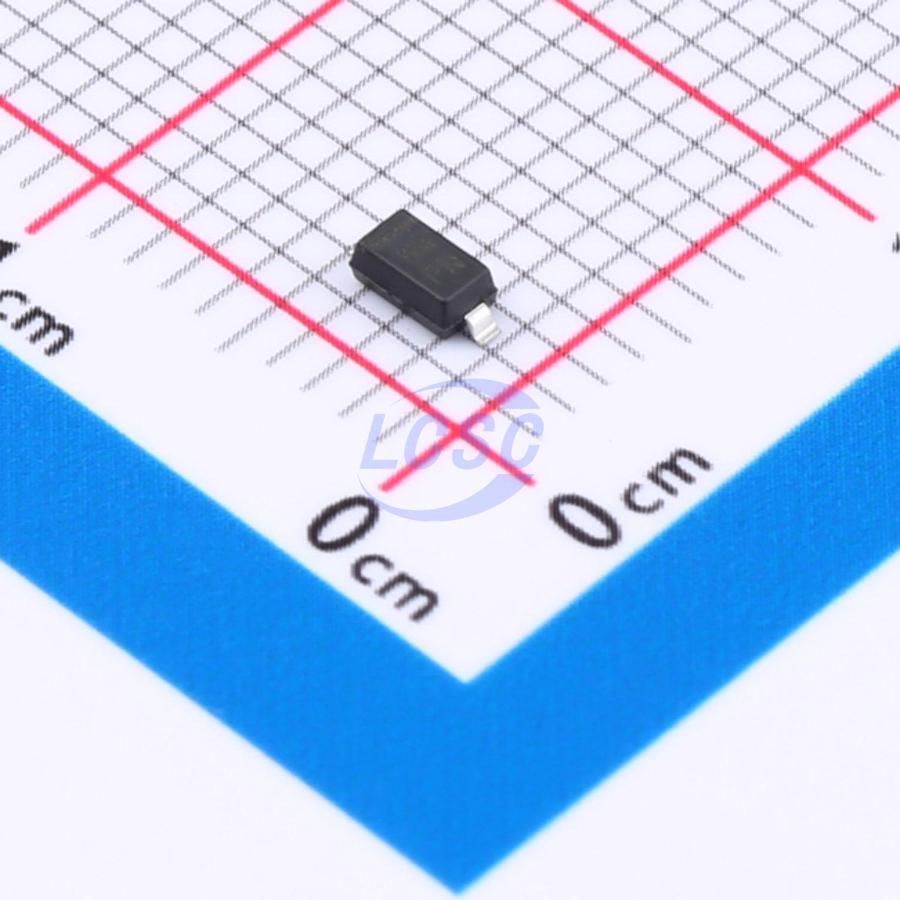

BZT52C36-E3-18
Zener Diode Independent 36V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C36-E3-18
- Store part #
- C3009062
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C3009062
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.54 | ₹62.70 |
| 50+ | ₹12.26 | ₹613.00 |
| 150+ | ₹12.08 | ₹1,812.00 |
| 500+ | ₹11.91 | ₹5,955.00 |
5 × ₹12.54
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52C36-E3-18
₹62.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@27V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 33.2V~37.8V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C36#C5178953FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 2,900 | ₹2.17 · 2,900 in stock | View |
 | BZT52C36#C5353050FOSAN · SOD-123 | FOSAN | SOD-123 | 2,950 | ₹1.87 · 2,950 in stock | View |
 | MM1Z36#C169494Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 2,800 | ₹1.96 · 2,800 in stock | View |
 | BZT52C36Q#C20600070YANGJIE · SOD-123 | YANGJIE | SOD-123 | 1,540 | ₹4.71 · 1,540 in stock | View |
 | MMSZ5258BT1G#C193869onsemi · SOD-123 | onsemi | SOD-123 | 12,240 | ₹6.02 · 12,240 in stock | View |
