DIODESDatasheet (PDF)

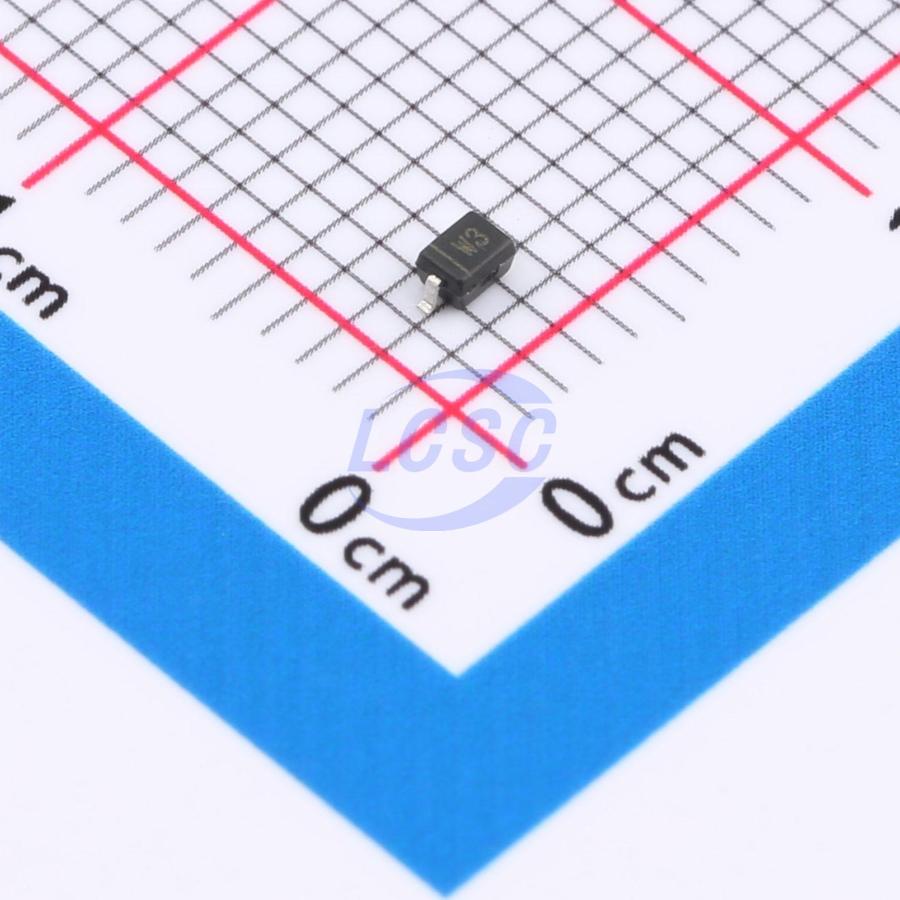

BZT52C3V3S-7-F
Zener Diode Independent 3.3V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 3.3V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C3V3S-7-F
- Store part #
- C177016
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C177016
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.29 | ₹102.90 |
| 100+ | ₹8.11 | ₹811.00 |
| 300+ | ₹7.03 | ₹2,109.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.54 | ₹33,240.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹10.29
₹102.90
excl. GST
₹121.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C3V3S-7-F
₹102.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.1V~3.5V
- Zener Voltage(Nom)
- 3.3V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.025 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V3SQ-7-F#C507913DIODES · SOD-323 | DIODES | SOD-323 | 140 | ₹7.41 · 140 in stock | View |
| BZT52C3V3S#C53058591High Diode · SOD-323 | High Diode | SOD-323 | 11,850 | ₹1.61 · 11,850 in stock | View | |
 | BZT52C3V3S#C545302LGE · SOD-323 | LGE | SOD-323 | 3,450 | ₹1.96 · 3,450 in stock | View |
 | BZT52C3V3S-TP#C668900MCC · SOD-323 | MCC | SOD-323 | 1,980 | ₹7.28 · 1,980 in stock | View |
 | BZT52C3V3S#C699135YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 140 | ₹3.27 · 140 in stock | View |
