DIODESDatasheet (PDF)

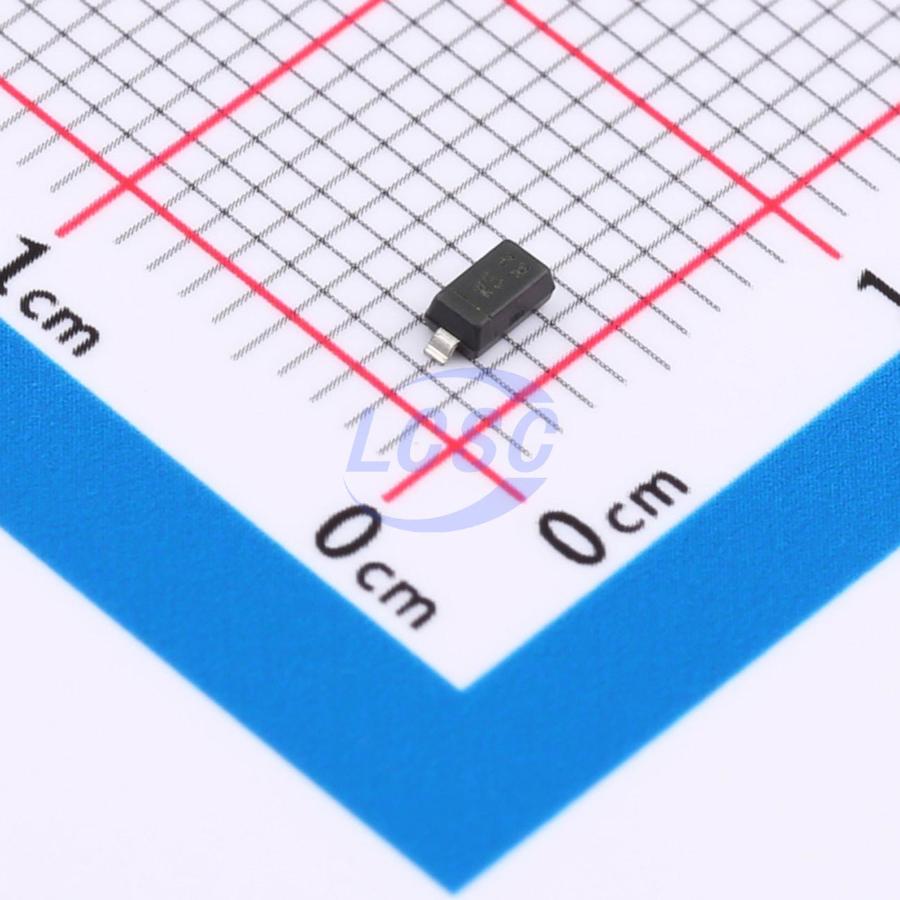

BZT52C3V9-13-F
Zener Diode Independent 3.9V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.9V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C3V9-13-F
- Store part #
- C5244702
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C5244702
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.24 | ₹52.40 |
| 100+ | ₹5.16 | ₹516.00 |
| 300+ | ₹5.12 | ₹1,536.00 |
| 1,000+ | ₹5.07 | ₹5,070.00 |
10 × ₹5.24
₹52.40
excl. GST
₹61.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZT52C3V9-13-F
₹52.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.7V~4.1V
- Zener Voltage(Nom)
- 3.9V
- Impedance(Zzk)
- 600Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.02 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V9-7-F#C154917DIODES · SOD-123 | DIODES | SOD-123 | 11,660 | ₹10.60 · 11,660 in stock | View |
 | BZT52C3V9#C181195Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 2,850 | ₹2.26 · 2,850 in stock | View |
 | BZT52C3V9#C213113FMS(Formosa Microsemi) · SOD-123 | FMS(Formosa Microsemi) | SOD-123 | 100 | ₹2.47 · 100 in stock | View |
 | BZT52C3V9#C541648AnBon · SOD-123 | AnBon | SOD-123 | 3,300 | ₹1.96 · 3,300 in stock | View |
 | BZT52C3V9#C19077398R+O · SOD-123 | R+O | SOD-123 | 77,800 | ₹1.64 · 77,800 in stock | View |
