DIODESDatasheet (PDF)

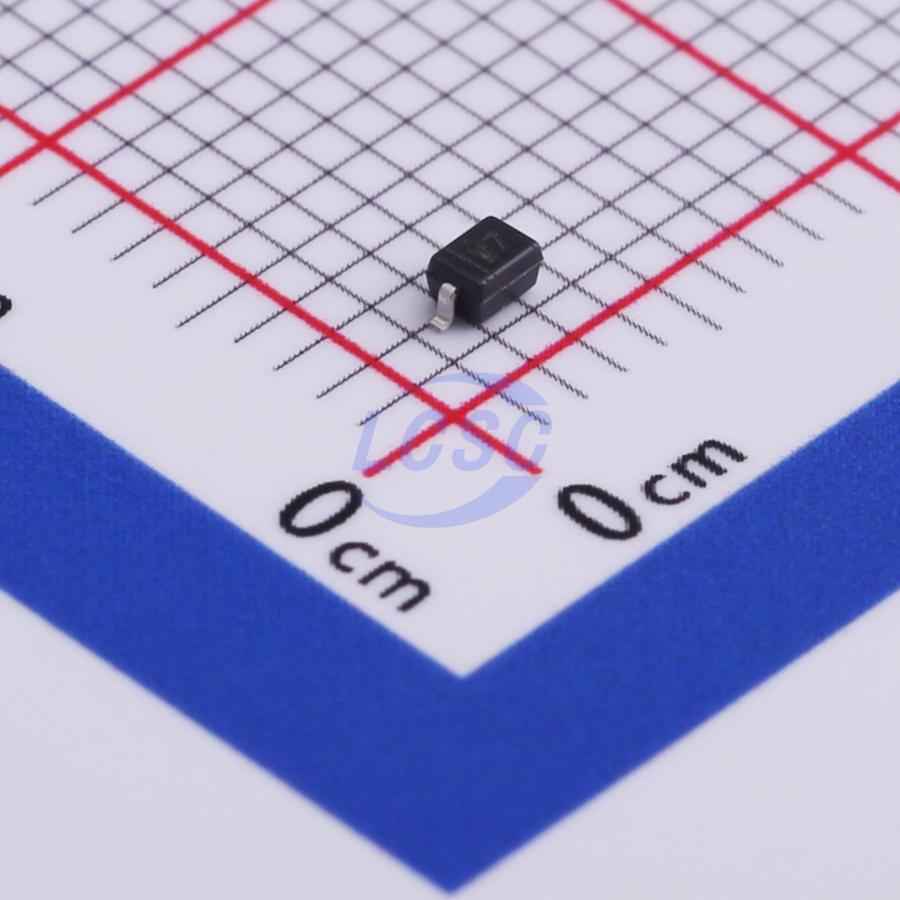

BZT52C4V7SQ-7-F
Zener Diode Independent 4.7V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 4.7V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C4V7SQ-7-F
- Store part #
- C507915
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,900 in stock
#C507915
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.79 | ₹97.90 |
| 100+ | ₹7.73 | ₹773.00 |
| 300+ | ₹6.68 | ₹2,004.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
| 9,000+ | ₹4.97 | ₹44,730.00 |
10 × ₹9.79
₹97.90
excl. GST
₹115.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C4V7SQ-7-F
₹97.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.4V~5V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C4V7S#C22449096BLUE ROCKET · SOD-323 | BLUE ROCKET | SOD-323 | 2,200 | ₹2.17 · 2,200 in stock | View |
 | BZT52C4V7S#C5125709BORN · SOD-323 | BORN | SOD-323 | 2,500 | ₹2.38 · 2,500 in stock | View |
 | BZT52C4V7S#C5157531LGE · SOD-323 | LGE | SOD-323 | 500 | ₹2.20 · 500 in stock | View |
 | BZT52C4V7S#C19077439R+O · SOD-323 | R+O | SOD-323 | 3,31,750 | ₹2.55 · 3,31,750 in stock | View |
 | BZT52C4V7S#C22368926Wild Goose · SOD-323 | Wild Goose | SOD-323 | 2,800 | ₹1.47 · 2,800 in stock | View |
