DIODESDatasheet (PDF)

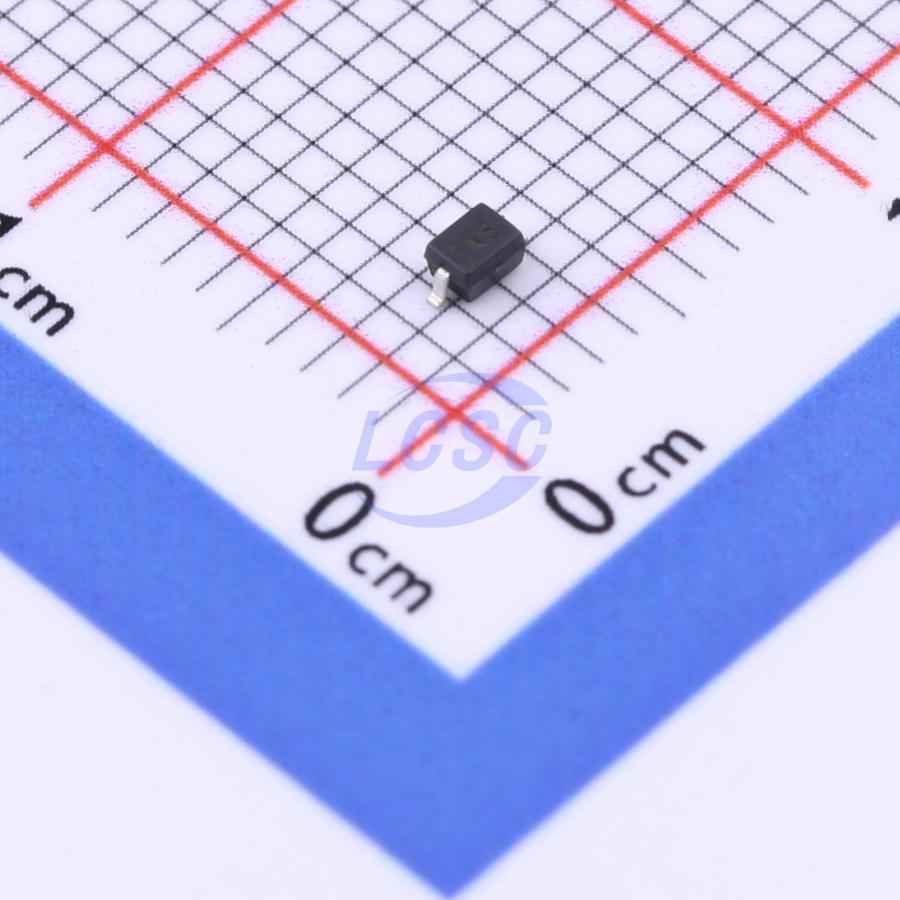

BZT52C5V1SQ-7-F
Zener Diode 5.1V 200mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 5.1V 200mW SOD-323
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C5V1SQ-7-F
- Store part #
- C3033170
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,380 in stock
#C3033170
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.11 | ₹81.10 |
| 100+ | ₹6.48 | ₹648.00 |
| 300+ | ₹5.66 | ₹1,698.00 |
| 3,000+ | ₹4.86 | ₹14,580.00 |
| 6,000+ | ₹4.37 | ₹26,220.00 |
| 9,000+ | ₹4.11 | ₹36,990.00 |
10 × ₹8.11
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C5V1SQ-7-F
₹81.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 200mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 60Ω
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 480Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Key features
- Planar Die Construction
- Small Surface Mount Package
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C5V1S-7-F#C151348DIODES · SOD-323 | DIODES | SOD-323 | 63,540 | ₹4.70 · 63,540 in stock | View |
 | LM3Z5V1T1G#C114282LRC · SOD-323 | LRC | SOD-323 | 2,67,720 | ₹3.88 · 2,67,720 in stock | View |
 | BZT52C5V1S#C19189992BLUE ROCKET · SOD-323 | BLUE ROCKET | SOD-323 | 5,000 | ₹2.06 · 5,000 in stock | View |
 | BZT52C5V1S#C545356LGE · SOD-323 | LGE | SOD-323 | 1,850 | ₹2.39 · 1,850 in stock | View |
 | BZT52C5V1S#C19077440R+O · SOD-323 | R+O | SOD-323 | 5,50,550 | ₹2.45 · 5,50,550 in stock | View |
