VISHAYDatasheet (PDF)

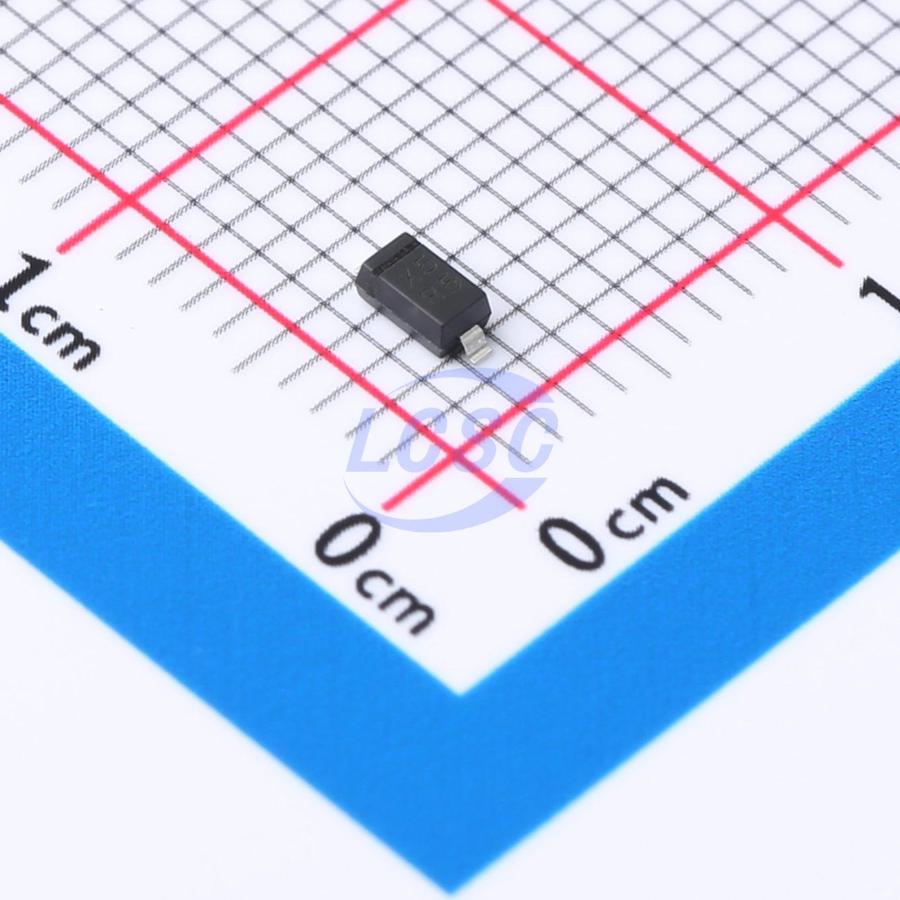

BZT52C75-E3-08
Zener Diode Independent 75V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 75V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C75-E3-08
- Store part #
- C6870939
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,350 in stock
#C6870939
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.75 | ₹67.50 |
| 100+ | ₹5.31 | ₹531.00 |
| 300+ | ₹4.59 | ₹1,377.00 |
| 3,000+ | ₹4.05 | ₹12,150.00 |
| 6,000+ | ₹3.61 | ₹21,660.00 |
| 9,000+ | ₹3.40 | ₹30,600.00 |
10 × ₹6.75
₹67.50
excl. GST
₹79.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C75-E3-08
₹67.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 250Ω
- Zener Voltage(Range)
- 71.25V~78.75V
- Zener Voltage(Nom)
- 75V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C75-HE3_A-08#C20561085VISHAY · SOD-123 | VISHAY | SOD-123 | 12,880 | ₹6.46 · 12,880 in stock | View |
 | SZMMSZ5267BT1G#C266795onsemi · SOD-123 | onsemi | SOD-123 | 260 | ₹18.48 · 260 in stock | View |
 | S-LMSZ5267BT1G#C43540046LRC · SOD-123 | LRC | SOD-123 | 2,160 | ₹3.51 · 2,160 in stock | View |
 | LMSZ5267BT1G#C5266936LRC · SOD-123 | LRC | SOD-123 | 3,000 | ₹5.77 · 3,000 in stock | View |
 | MMSZ5267BT1G#C80160onsemi · SOD-123 | onsemi | SOD-123 | 6,010 | ₹7.09 · 6,010 in stock | View |
