VISHAYDatasheet (PDF)

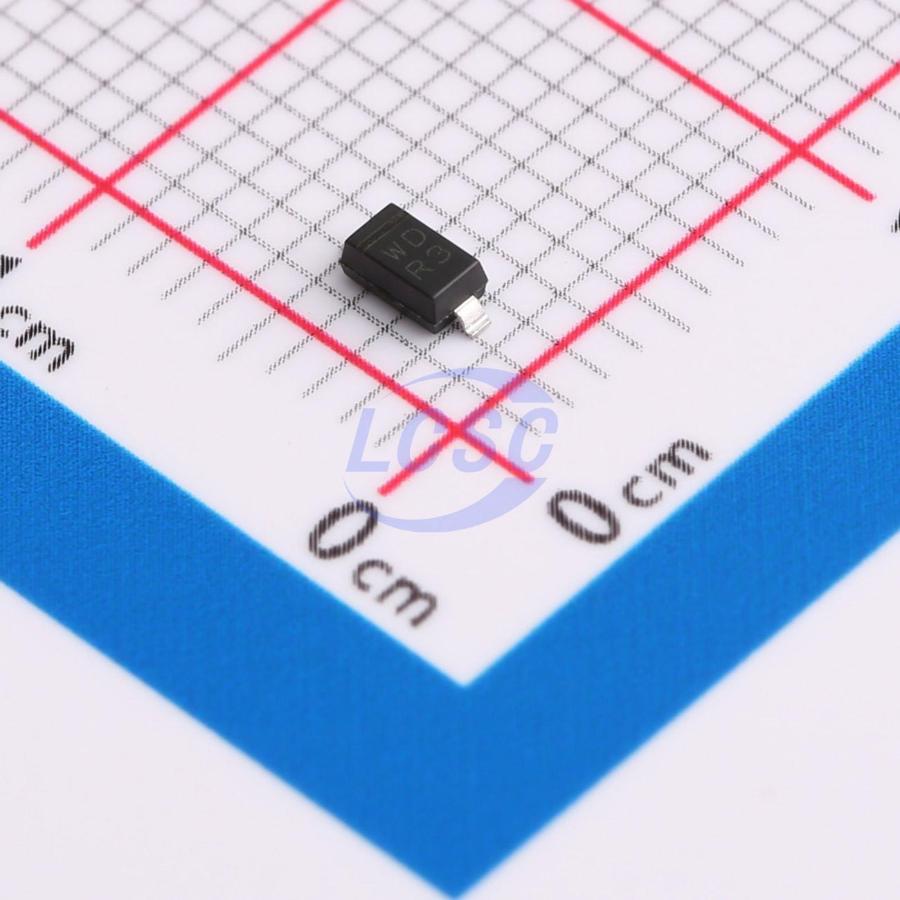

BZT52C7V5-E3-08
Zener Diode Independent 7.5V 300mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 7.5V 300mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C7V5-E3-08
- Store part #
- C3733517
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C3733517
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.20 | ₹602.00 |
| 30+ | ₹53.67 | ₹1,610.10 |
| 100+ | ₹45.42 | ₹4,542.00 |
| 500+ | ₹41.73 | ₹20,865.00 |
| 1,000+ | ₹39.33 | ₹39,330.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C7V5-E3-08
₹75.62 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA@5V
- Impedance(Zzt)
- 7Ω
- Zener Voltage(Range)
- 7.13V~7.88V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
Key features
- Silicon planar Zener diodes
- The Zener voltages are graded according to the international E24 standard
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8kV, Machine model >800V
- Base P/N-E3, RoHS-compliant, commercial grade
- Base P/N-HE3_A, RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52C7V5-HE3-08#C5957596VISHAY · SOD-123 | VISHAY | SOD-123 | 40 | ₹21.13 · 40 in stock | View | |
 | LMSZ5236BT1G#C131747LRC · SOD-123 | LRC | SOD-123 | 60 | ₹3.55 · 60 in stock | View |
 | MMSZ5236BT1G#C82324onsemi · SOD-123 | onsemi | SOD-123 | 700 | ₹5.98 · 700 in stock | View |
 | BZT52C7V5#C5353034FOSAN · SOD-123 | FOSAN | SOD-123 | 3,400 | ₹1.49 · 3,400 in stock | View |
 | BZT52C7V5#C726999TWGMC · SOD-123 | TWGMC | SOD-123 | 2,950 | ₹2.01 · 2,950 in stock | View |
