DIODESDatasheet (PDF)

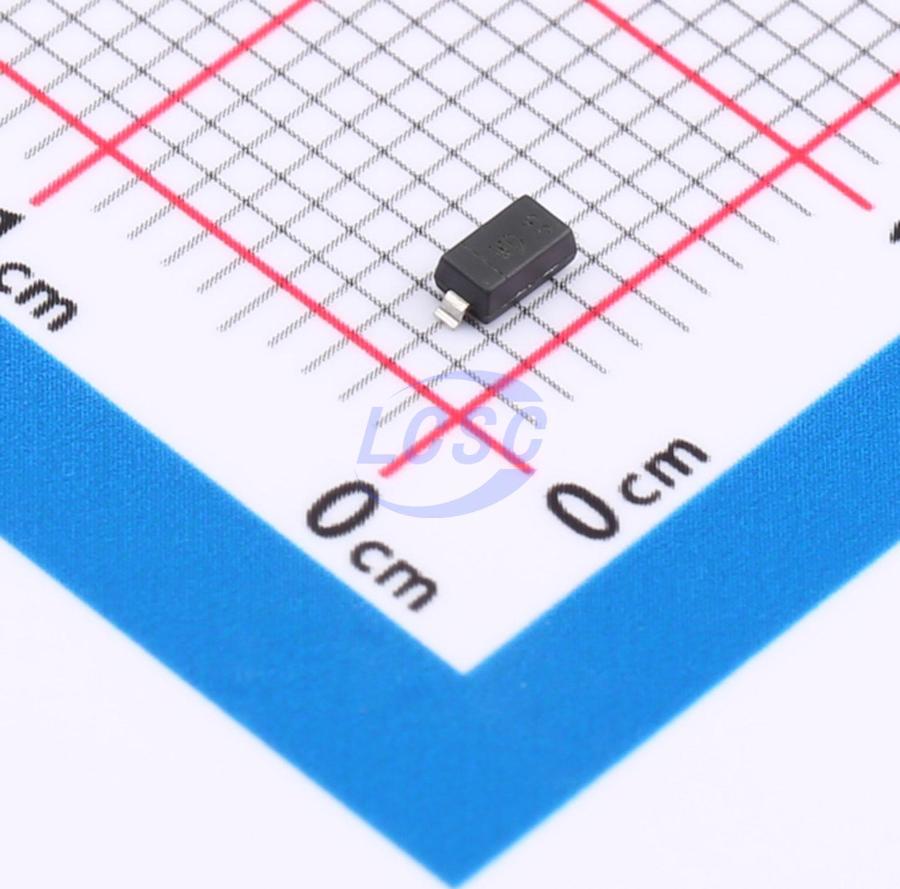

BZT52C8V2Q-7-F
Zener Diode 8.2V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 8.2V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- BZT52C8V2Q-7-F
- Store part #
- C6870945
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,730 in stock
#C6870945
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.88 | ₹88.80 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.23 | ₹1,869.00 |
| 3,000+ | ₹5.57 | ₹16,710.00 |
| 6,000+ | ₹5.04 | ₹30,240.00 |
| 9,000+ | ₹4.78 | ₹43,020.00 |
10 × ₹8.88
₹88.80
excl. GST
₹104.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52C8V2Q-7-F
₹88.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 700nA
- Impedance(Zzt)
- 15Ω
- Zener Voltage(Range)
- 7.7V~8.7V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 80Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
Key features
- Planar Die Construction
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead- Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC- Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C8V2-13-F#C3001623DIODES · SOD-123 | DIODES | SOD-123 | 9,020 | ₹5.46 · 9,020 in stock | View |
 | BZT52C8V2#C2827910Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 1,150 | ₹2.04 · 1,150 in stock | View |
 | BZT52C8V2#C213121FMS(Formosa Microsemi) · SOD-123 | FMS(Formosa Microsemi) | SOD-123 | 50 | ₹2.66 · 50 in stock | View |
 | BZT52C8V2#C19077406R+O · SOD-123 | R+O | SOD-123 | 3,72,850 | ₹2.41 · 3,72,850 in stock | View |
 | BZT52C8V2#C54930256HANGYU MICROELECTRONICS · SOD-123 | HANGYU MICROELECTRONICS | SOD-123 | 2,300 | ₹1.40 · 2,300 in stock | View |
