VISHAYDatasheet (PDF)

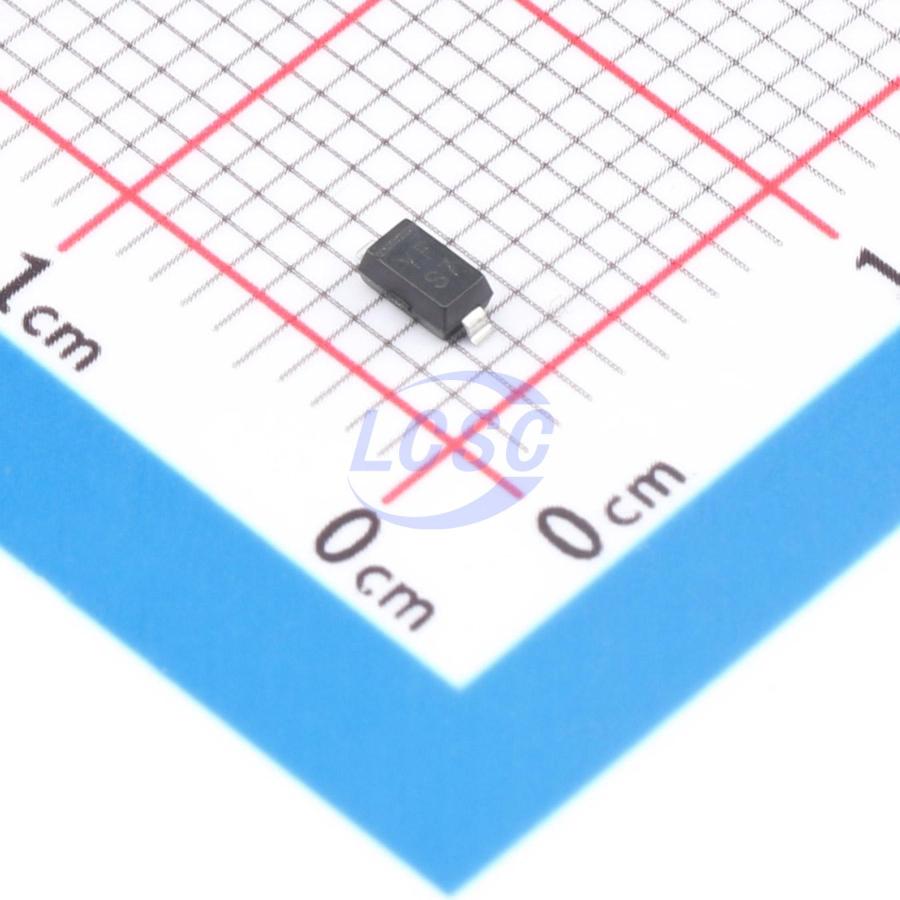

BZT52C9V1-HE3 A-08
1 Independent 8.65V~9.56V 9.1V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- BZT52C9V1-HE3 A-08
- Store part #
- C25006777
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
845 in stock
#C25006777
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.51 | ₹167.55 |
| 50+ | ₹33.00 | ₹1,650.00 |
| 150+ | ₹32.65 | ₹4,897.50 |
| 500+ | ₹32.31 | ₹16,155.00 |
5 × ₹33.51
₹167.55
excl. GST
₹197.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per bag
BZT52C9V1-HE3 A-08
₹167.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 8.65V~9.56V
- Zener Voltage(Nom)
- 9.1V
- Impedance(Zzk)
- 50Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 15,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
Key features
- Silicon planar Zener diode
- Zener voltage graded per international E24 standard
- AEC-Q101 qualification available
- ESD capability per AEC-Q101: Human Body Model >8 kV, Machine Model >800 V
- Base part number E3, RoHS compliant, commercial grade
- Base part number HE3_A, RoHS compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5239B#C3742224DIOTEC · SOD-123F | DIOTEC | SOD-123F | 2,480 | ₹7.17 · 2,480 in stock | View |
 | LMSZ5239BT1G#C131746LRC · SOD-123 | LRC | SOD-123 | 22,000 | ₹3.52 · 22,000 in stock | View |
 | MMSZ5239B#C20602077YANGJIE · SOD-123 | YANGJIE | SOD-123 | 1,900 | ₹1.71 · 1,900 in stock | View |
 | MMSZ5239B#C22395558R+O · SOD-123 | R+O | SOD-123 | 1,25,860 | ₹3.02 · 1,25,860 in stock | View |
 | MMSZ5239B_R1_00001#C268600PANJIT · SOD-123 | PANJIT | SOD-123 | 5,800 | ₹5.86 · 5,800 in stock | View |
