NexperiaDatasheet (PDF)

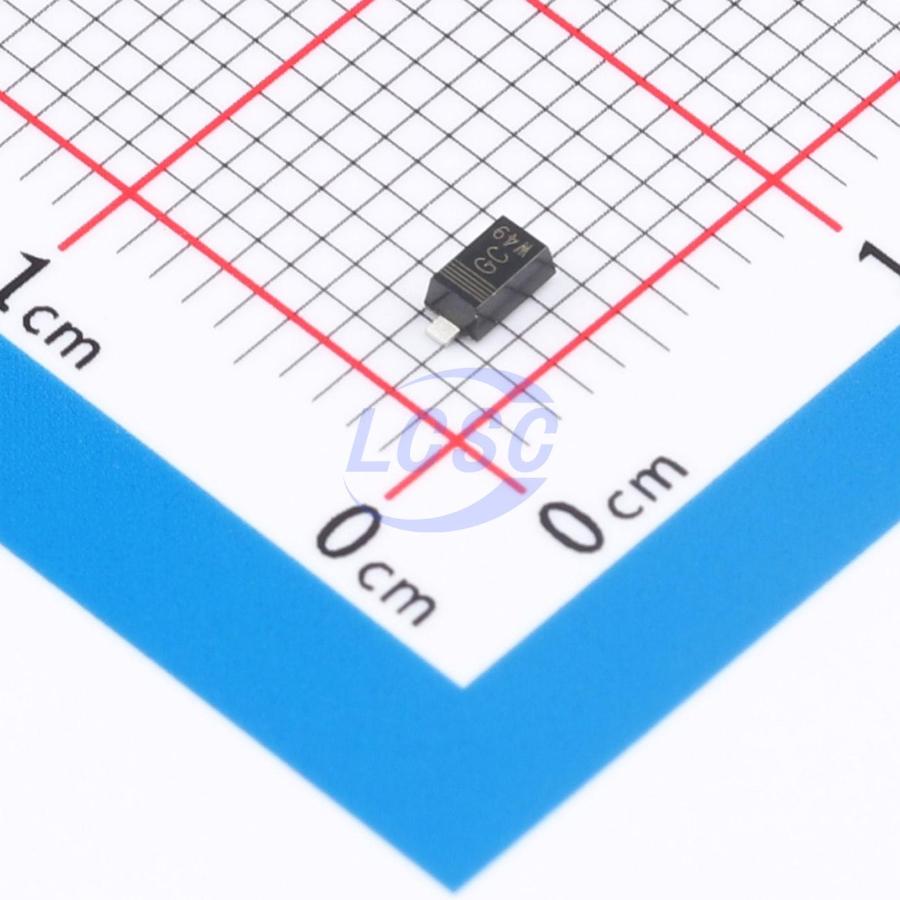

BZT52H-A13-QX
1 Independent 12.87V~13.13V 13V SOD-123F Single Zener Diodes RoHS
SOD-123FROHS3 CompliantActive
DIODE ZENER 13V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-A13-QX
- Store part #
- C7507855
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
92 in stock
#C7507855
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.29 | ₹56.29 |
| 10+ | ₹55.00 | ₹550.00 |
| 30+ | ₹53.91 | ₹1,617.30 |
| 100+ | ₹53.04 | ₹5,304.00 |
1 × ₹56.29
₹56.29
excl. GST
₹66.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
BZT52H-A13-QX
₹56.29 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±1%
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Zener Voltage(Range)
- 12.87V~13.13V
- Zener Voltage(Nom)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
Overview
General- purpose Zener diodes in an SOD123F small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 830 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B13#C22399883R+O · SOD-123 | R+O | SOD-123 | 57,500 | ₹2.33 · 57,500 in stock | View |
 | MM1Z13BW#C25836733YFW · SOD-123 | YFW | SOD-123 | 2,300 | ₹2.88 · 2,300 in stock | View |
 | MM1Z13BW#C2856902JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 900 | ₹2.32 · 900 in stock | View |
 | BZT52B13#C2910055JSCJ · SOD-123 | JSCJ | SOD-123 | 200 | ₹3.93 · 200 in stock | View |
 | BZT52-B13_R1_00001#C2962202PANJIT · SOD-123 | PANJIT | SOD-123 | 4,500 | ₹3.36 · 4,500 in stock | View |
