NexperiaDatasheet (PDF)

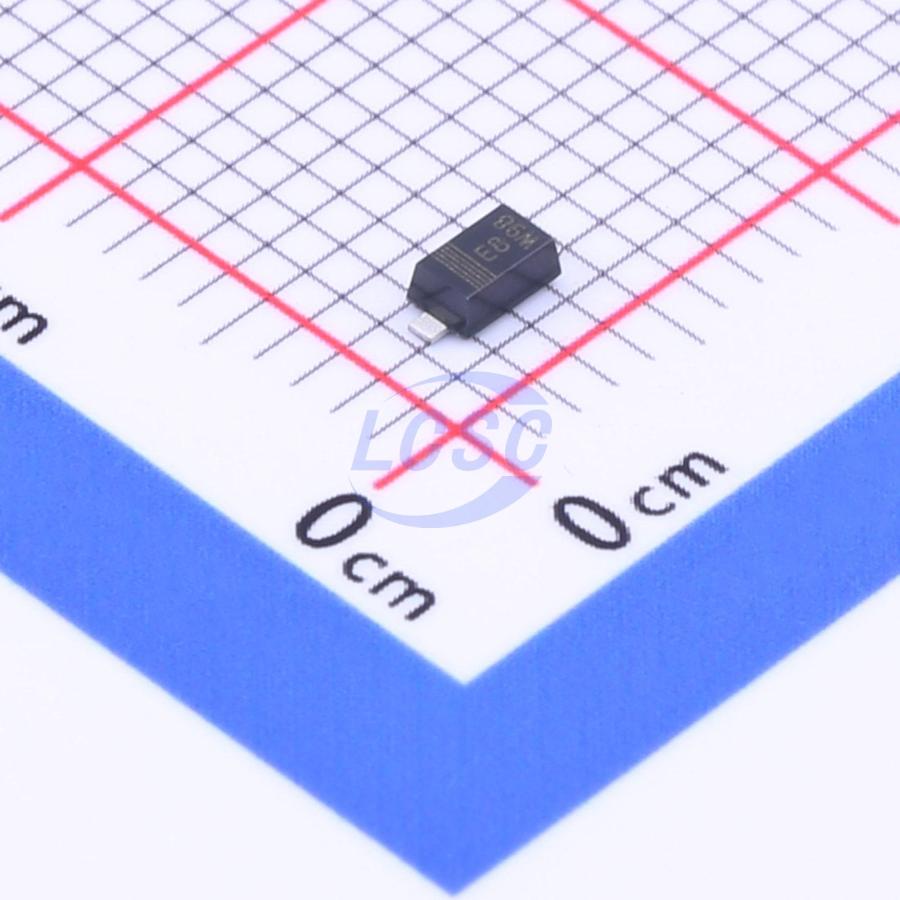

BZT52H-B39,115
Zener Diode Independent 39V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 39V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-B39,115
- Store part #
- C550328
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C550328
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.91 | ₹84.55 |
| 50+ | ₹13.28 | ₹664.00 |
| 150+ | ₹11.47 | ₹1,720.50 |
| 500+ | ₹10.11 | ₹5,055.00 |
| 3,000+ | ₹9.02 | ₹27,060.00 |
| 6,000+ | ₹8.47 | ₹50,820.00 |
5 × ₹16.91
₹84.55
excl. GST
₹99.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-B39,115
₹84.55 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 50nA@27.3V
- Impedance(Zzt)
- 75Ω
- Zener Voltage(Range)
- 38.2V~39.8V
- Zener Voltage(Nom)
- 39V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BZT52-B39J#C550204Nexperia · SOD-123 | Nexperia | SOD-123 | 75 | ₹10.48 · 75 in stock | View | |
 | BZT52-B39X#C550205Nexperia · SOD-123 | Nexperia | SOD-123 | 2,860 | ₹3.59 · 2,860 in stock | View |
 | MMSZ5259A_R1_00001#C393443PANJIT · SOD-123 | PANJIT | SOD-123 | 1,860 | ₹5.93 · 1,860 in stock | View |
 | MMSZ39VBW#C261248Tak Cheong · SOD-123 | Tak Cheong | SOD-123 | 2,060 | ₹2.82 · 2,060 in stock | View |
 | BZT52C39#C5353051FOSAN · SOD-123 | FOSAN | SOD-123 | 5,050 | ₹1.85 · 5,050 in stock | View |
