NexperiaDatasheet (PDF)

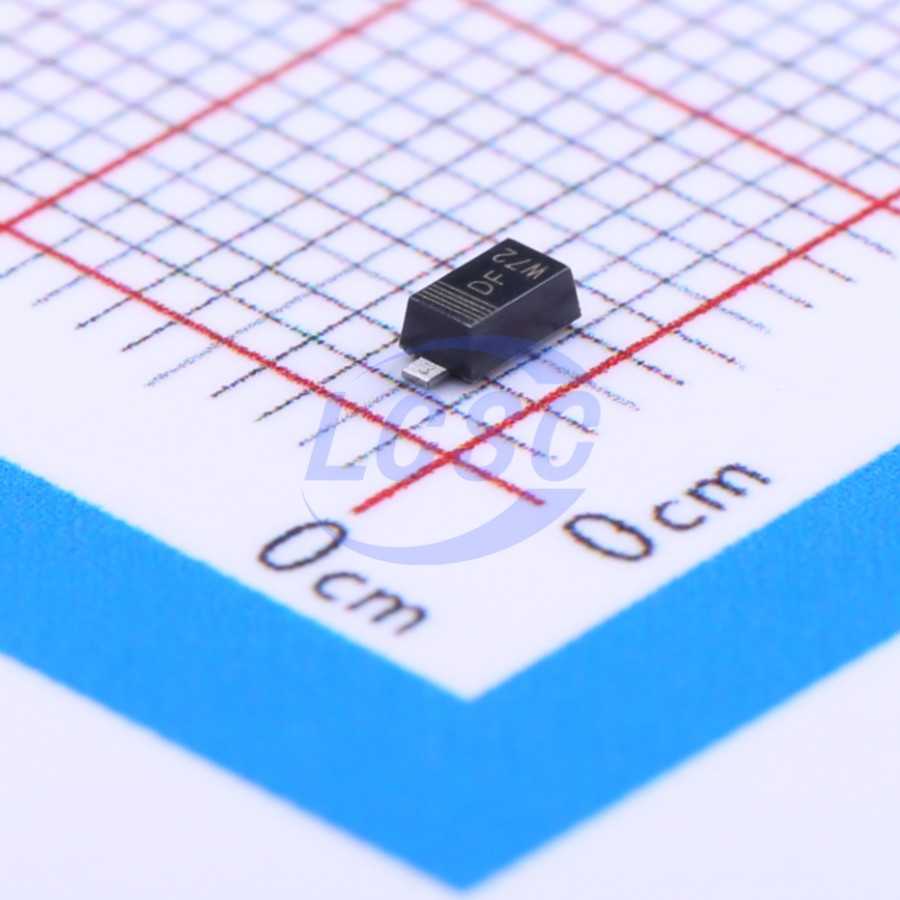

BZT52H-B3V3,115
Zener Diode Independent 3.3V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 3.3V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-B3V3,115
- Store part #
- C179372
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C179372
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹4.23 | ₹423.00 |
| 300+ | ₹3.68 | ₹1,104.00 |
| 3,000+ | ₹3.25 | ₹9,750.00 |
| 6,000+ | ₹2.92 | ₹17,520.00 |
| 9,000+ | ₹2.75 | ₹24,750.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-B3V3,115
₹53.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.23V~3.37V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52HC3V3WF-7#C5244723DIODES · SOD-123F | DIODES | SOD-123F | 5 | ₹11.35 · 5 in stock | View |
 | BZT52H-C3V3,115#C59206Nexperia · SOD-123F | Nexperia | SOD-123F | 40,940 | ₹4.48 · 40,940 in stock | View |
 | BZT52B3V3#C19077392R+O · SOD-123 | R+O | SOD-123 | 2,83,380 | ₹2.20 · 2,83,380 in stock | View |
 | BZT52B3V3#C2904808YONGYUTAI · SOD-123 | YONGYUTAI | SOD-123 | 2,250 | ₹2.01 · 2,250 in stock | View |
 | BZT52B3V3#C41419602HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 2,550 | ₹2.18 · 2,550 in stock | View |
