NexperiaDatasheet (PDF)

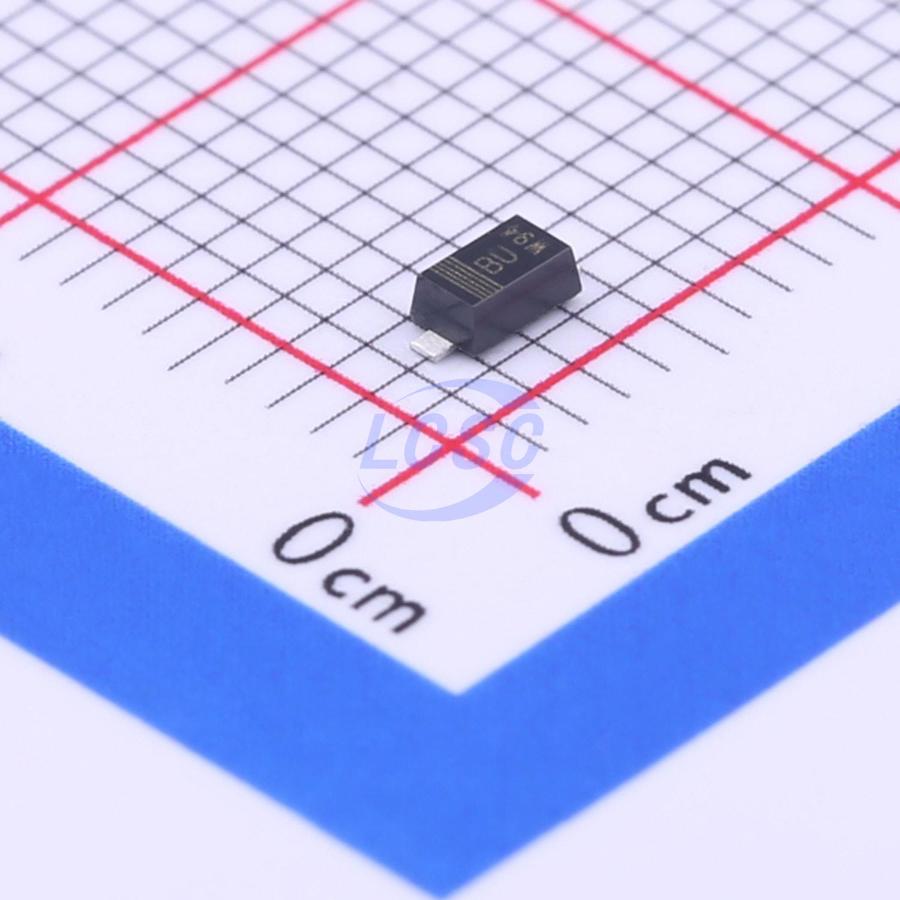

BZT52H-C27,115
Zener Diode Independent 27V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 27V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C27,115
- Store part #
- C404361
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
520 in stock
#C404361
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.01 | ₹80.20 |
| 200+ | ₹3.18 | ₹636.00 |
| 600+ | ₹2.70 | ₹1,620.00 |
| 3,000+ | ₹2.25 | ₹6,750.00 |
| 9,000+ | ₹2.01 | ₹18,090.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
20 × ₹4.01
₹80.20
excl. GST
₹94.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C27,115
₹80.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 50nA@18.9V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 25.1V~28.9V
- Zener Voltage(Nom)
- 27V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52-C27X#C550267Nexperia · SOD-123 | Nexperia | SOD-123 | 2,680 | ₹3.82 · 2,680 in stock | View |
 | BZD27C27P#C5455754LGE · SOD-123FL | LGE | SOD-123FL | 30 | ₹12.36 · 30 in stock | View |
 | BZT52C27#C5353047FOSAN · SOD-123 | FOSAN | SOD-123 | 3,000 | ₹1.49 · 3,000 in stock | View |
 | MMSZ5254BT1G#C235772onsemi · SOD-123 | onsemi | SOD-123 | 230 | ₹8.84 · 230 in stock | View |
 | SZMMSZ5254BT1G#C894692onsemi · SOD-123 | onsemi | SOD-123 | 3 | ₹46.77 · 3 in stock | View |
