NexperiaDatasheet (PDF)

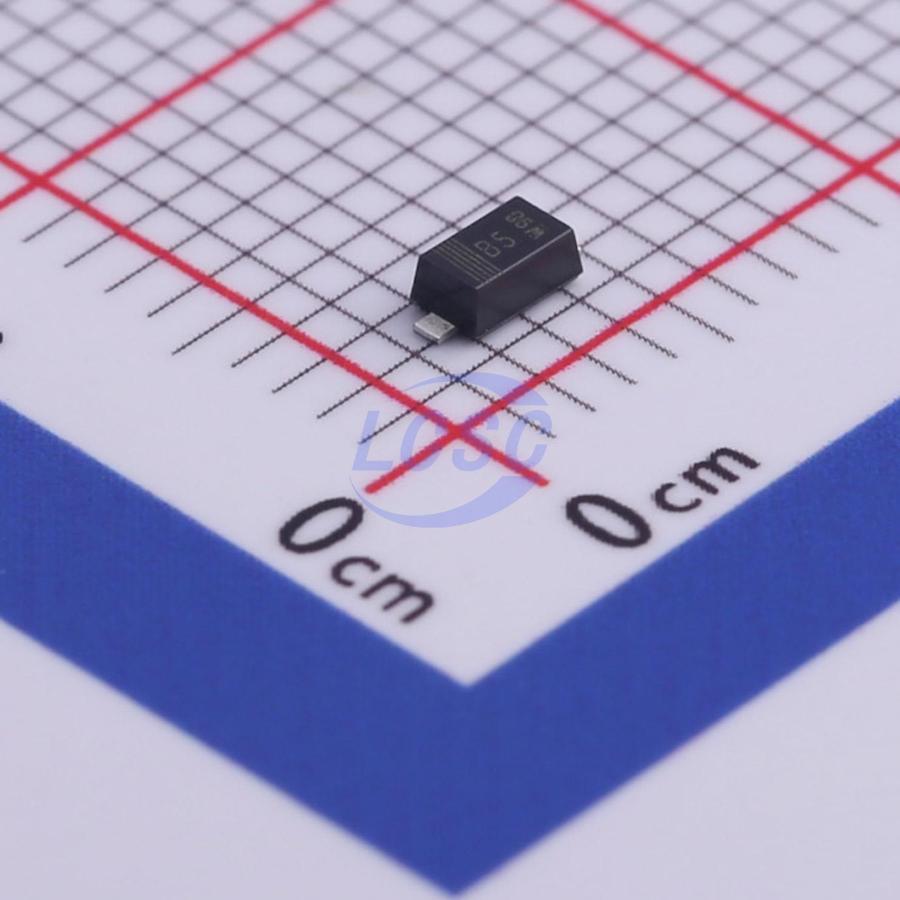

BZT52H-C3V0,115
Zener Diode Independent 3V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 3V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C3V0,115
- Store part #
- C454970
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C454970
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.94 | ₹79.40 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.52 | ₹1,656.00 |
| 3,000+ | ₹4.50 | ₹13,500.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹7.94
₹79.40
excl. GST
₹93.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C3V0,115
₹79.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 2.8V~3.2V
- Zener Voltage(Nom)
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52HC3V0WF-7#C5124979DIODES · SOD-123F | DIODES | SOD-123F | 445 | ₹14.61 · 445 in stock | View |
 | BZT52C3V0#C2903916GOODWORK · SOD-123 | GOODWORK | SOD-123 | 33,550 | ₹2.08 · 33,550 in stock | View |
 | LBZT52C3V0T1G#C12756LRC · SOD-123 | LRC | SOD-123 | 1,700 | ₹3.29 · 1,700 in stock | View |
 | BZT52C3V0#C181192Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 2,650 | ₹2.29 · 2,650 in stock | View |
| BZT52C3V0HE3-TP#C19986483MCC · SOD-123 | MCC | SOD-123 | 2,620 | ₹6.20 · 2,620 in stock | View | |
