NexperiaDatasheet (PDF)

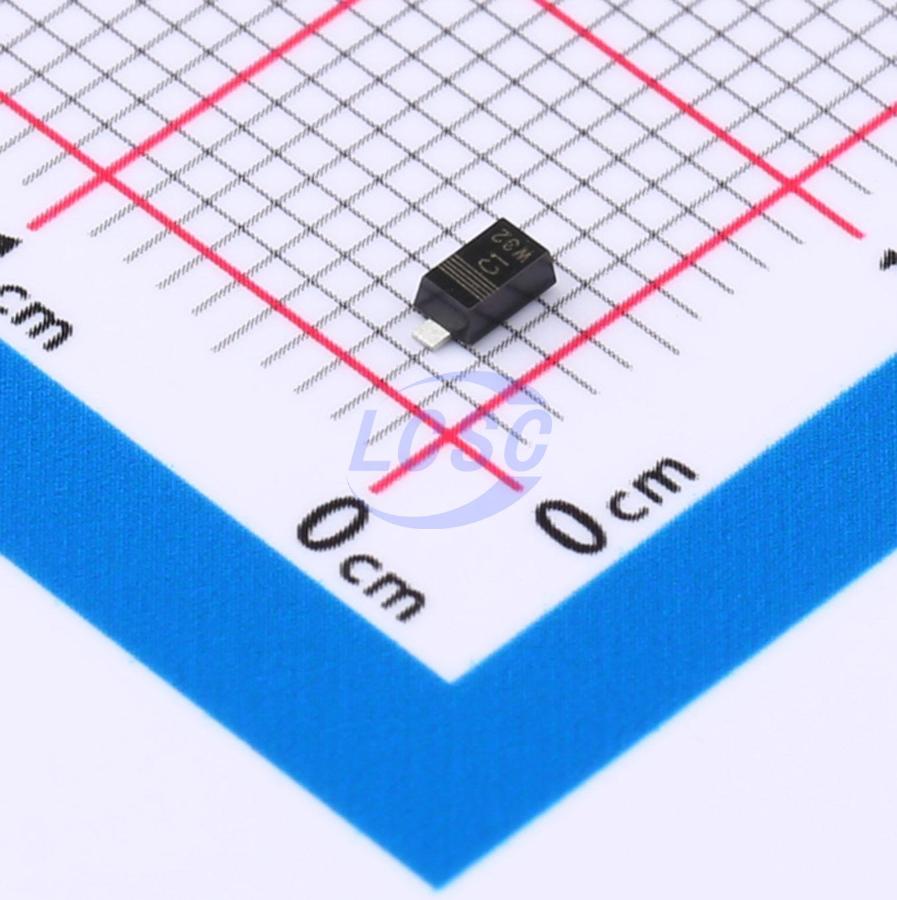

BZT52H-C47,115
Zener Diode 1 Independent 47V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 47V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C47,115
- Store part #
- C550349
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
360 in stock
#C550349
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.50 | ₹55.00 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 3,000+ | ₹3.44 | ₹10,320.00 |
| 6,000+ | ₹3.12 | ₹18,720.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.50
₹55.00
excl. GST
₹64.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C47,115
₹55.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 50nA@32.9V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 44V~50V
- Zener Voltage(Nom)
- 47V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52HC47WF-7#C5244728DIODES · SOD-123F | DIODES | SOD-123F | 120 | ₹7.83 · 120 in stock | View |
| BZT52-C47J#C550290Nexperia · SOD-123 | Nexperia | SOD-123 | On request | ₹3.96 · 0 in stock | View | |
 | BZT52C47#C55145536FOSAN · SOD-123 | FOSAN | SOD-123 | 2,600 | ₹1.87 · 2,600 in stock | View |
 | BZT52C47-7-F#C260902DIODES · SOD-123 | DIODES | SOD-123 | 2,990 | ₹10.74 · 2,990 in stock | View |
 | BZT52C47#C2891477MSKSEMI · SOD-123 | MSKSEMI | SOD-123 | 980 | ₹3.69 · 980 in stock | View |
