NexperiaDatasheet (PDF)

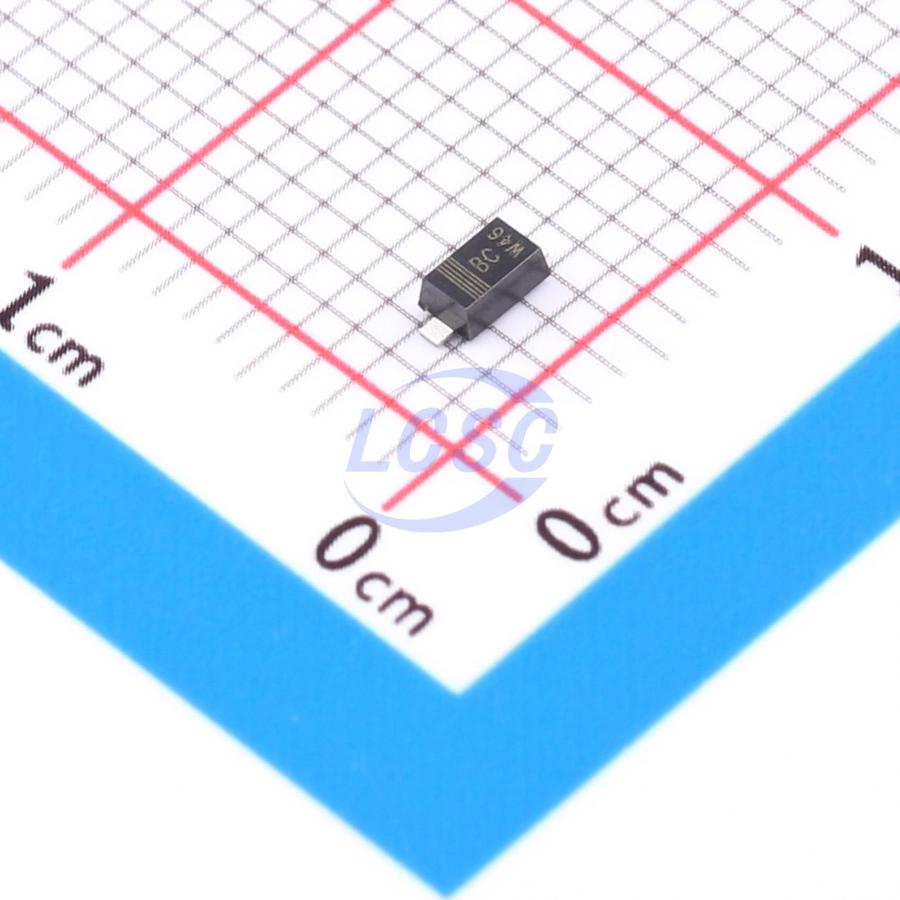

BZT52H-C5V6-QX
1 Independent 5.2V~6V 5.6V SOD-123F Single Zener Diodes RoHS
SOD-123FROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C5V6-QX
- Store part #
- C7507987
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C7507987
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.74 | ₹78.70 |
| 50+ | ₹15.37 | ₹768.50 |
| 150+ | ₹15.14 | ₹2,271.00 |
| 500+ | ₹14.90 | ₹7,450.00 |
5 × ₹15.74
₹78.70
excl. GST
₹92.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C5V6-QX
₹78.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 375mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Zener Voltage(Range)
- 5.2V~6V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.067 g
Overview
General- purpose Zener diodes in an SOD123F small and flat lead Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 830 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52HC5V6WFQ-7#C5157832DIODES · SOD-123F | DIODES | SOD-123F | 150 | ₹27.20 · 150 in stock | View |
 | BZT52C5V6Q-7-F#C260922DIODES · SOD-123 | DIODES | SOD-123 | 1,630 | ₹7.04 · 1,630 in stock | View |
 | BZT52C5V6-13-F#C2937139DIODES · SOD-123 | DIODES | SOD-123 | 4,850 | ₹10.16 · 4,850 in stock | View |
 | BZT52C5V6-7-F#C397930DIODES · SOD-123 | DIODES | SOD-123 | 51,710 | ₹7.55 · 51,710 in stock | View |
 | MM1Z5V6#C116112Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 88,550 | ₹1.93 · 88,550 in stock | View |
