NexperiaDatasheet (PDF)

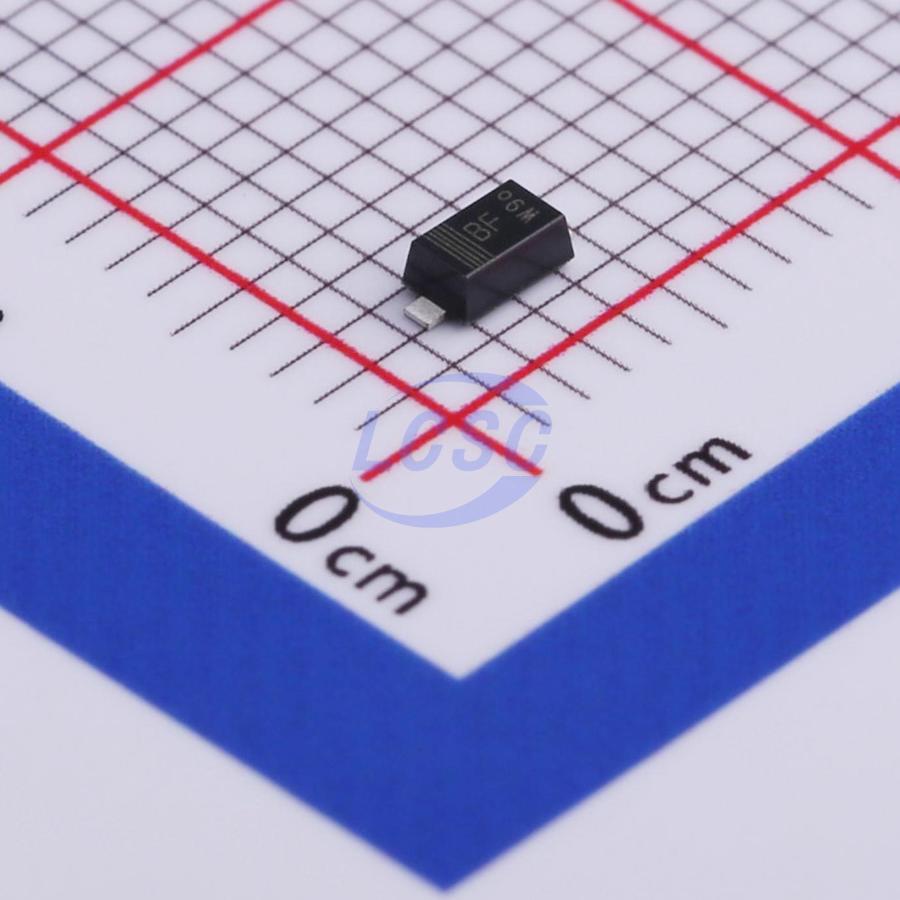

BZT52H-C7V5,115
Zener Diode Independent 7.5V 830mW Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE ZENER 7.5V 830mW SOD-123F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZT52H-C7V5,115
- Store part #
- C493582
- Package / case
- SOD-123F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C493582
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.90 | ₹98.00 |
| 200+ | ₹3.73 | ₹746.00 |
| 600+ | ₹3.08 | ₹1,848.00 |
| 3,000+ | ₹2.28 | ₹6,840.00 |
| 9,000+ | ₹1.94 | ₹17,460.00 |
| 21,000+ | ₹1.76 | ₹36,960.00 |
20 × ₹4.90
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT52H-C7V5,115
₹98.00 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 830mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 7V~7.9V
- Zener Voltage(Nom)
- 7.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Overview
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤830 mW
- Three tolerance series: ±1 %, ±2 % and approximately ±5 %
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C7V5#C2932740GOODWORK · SOD-123 | GOODWORK | SOD-123 | 51,600 | ₹1.97 · 51,600 in stock | View |
 | BZT52-C7V5X#C550315Nexperia · SOD-123 | Nexperia | SOD-123 | 3,000 | ₹2.61 · 3,000 in stock | View |
 | LBZT52C7V5T1G#C12760LRC · SOD-123 | LRC | SOD-123 | 2,950 | ₹4.09 · 2,950 in stock | View |
 | BZT52C7V5LP-7#C155514DIODES · SOD-123 | DIODES | SOD-123 | 100 | ₹31.46 · 100 in stock | View |
 | BZT52C7V5#C19189991BLUE ROCKET · SOD-123 | BLUE ROCKET | SOD-123 | 2,500 | ₹2.06 · 2,500 in stock | View |
