DIODESDatasheet (PDF)

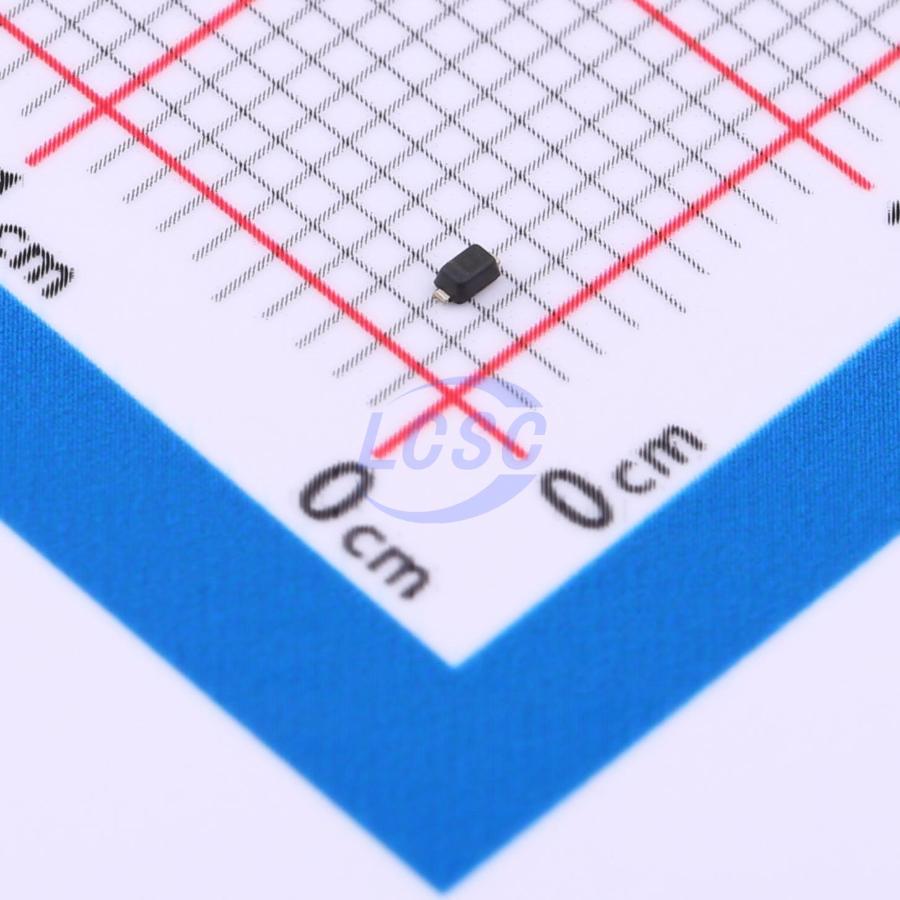

BZT585B24TQ-7
Zener Diode 24V 350mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 24V 350mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- BZT585B24TQ-7
- Store part #
- C6522724
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C6522724
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.09 | ₹85.45 |
| 50+ | ₹16.87 | ₹843.50 |
| 150+ | ₹16.71 | ₹2,506.50 |
| 500+ | ₹16.56 | ₹8,280.00 |
5 × ₹17.09
₹85.45
excl. GST
₹100.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT585B24TQ-7
₹85.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 50nA@16.8V
- Impedance(Zzt)
- 70Ω
- Zener Voltage(Range)
- 23.52V~24.48V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 250Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Key features
- ±2.0% Tolerance on Breakdown Voltage
- Small, Low Profile Surface Mount Package
- Flat Lead Package Design for Low Profile and High Power Dissipation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control and is AEC-Q101 qualified, is PPAP capable, and is manufactured in IATF16949:2016 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX584B24-TP#C725514MCC · SOD-523 | MCC | SOD-523 | 4 | ₹55.10 · 4 in stock | View |
 | BZX584B24VQ#C2942536YANGJIE · SOD-523 | YANGJIE | SOD-523 | 140 | ₹5.07 · 140 in stock | View |
 | BZX584B24V#C968164YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 740 | ₹3.84 · 740 in stock | View |
 | BZX584B24#C51814200CBI · SOD-523 | CBI | SOD-523 | 3,000 | ₹2.51 · 3,000 in stock | View |
 | TCMM5Z24V#C5361336Tak Cheong · SOD-523 | Tak Cheong | SOD-523 | 2,860 | ₹2.80 · 2,860 in stock | View |
