DIODESDatasheet (PDF)

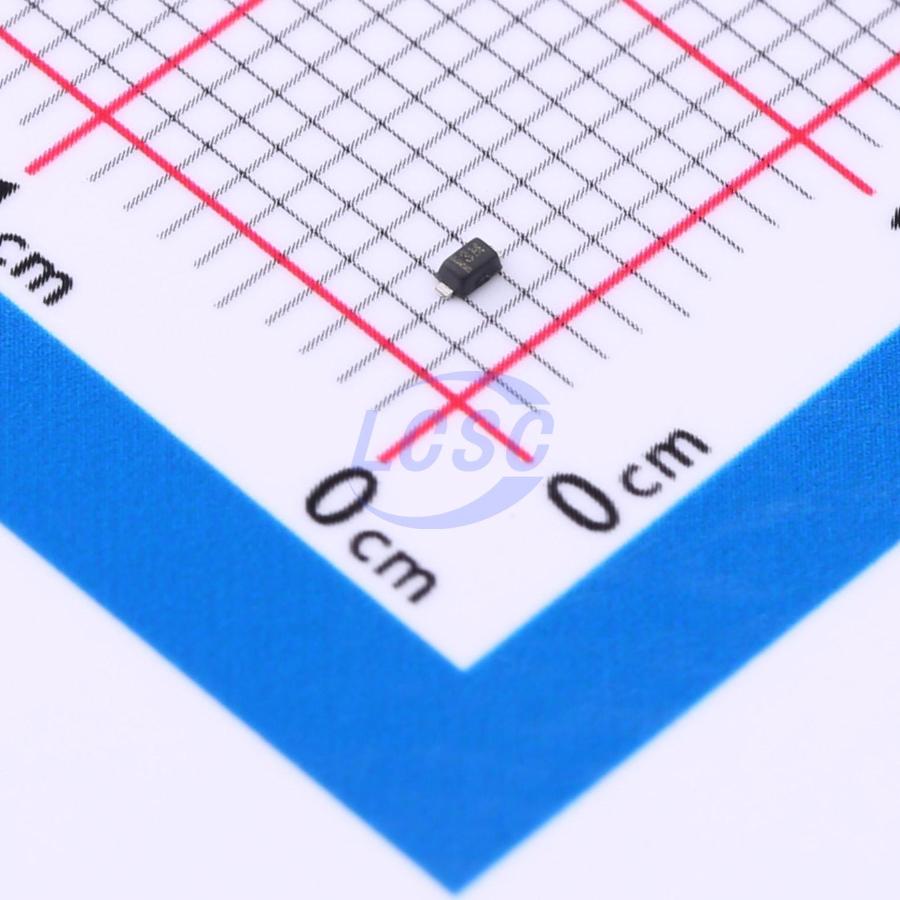

BZT585B4V7T-7
Zener Diode 4.7V 350mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 4.7V 350mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- BZT585B4V7T-7
- Store part #
- C686653
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C686653
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.22 | ₹62.20 |
| 100+ | ₹4.97 | ₹497.00 |
| 300+ | ₹4.35 | ₹1,305.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.52 | ₹21,120.00 |
| 9,000+ | ₹3.32 | ₹29,880.00 |
10 × ₹6.22
₹62.20
excl. GST
₹73.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT585B4V7T-7
₹62.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- ±2.0% Tolerance on Breakdown Voltage
- Small, Low Profile Surface Mount Package
- Flat Lead Package Design for Low Profile and High Power Dissipation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-B4V7,115#C550612Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 8,150 | ₹6.24 · 8,150 in stock | View |
 | BZX584B4V7#C53238090R+O · SOD-523 | R+O | SOD-523 | 1,400 | ₹3.55 · 1,400 in stock | View |
 | MM5Z4V7B#C261263Tak Cheong · SOD-523 | Tak Cheong | SOD-523 | 21,380 | ₹2.46 · 21,380 in stock | View |
 | BZX584B4V7#C968172YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 7,440 | ₹3.74 · 7,440 in stock | View |
 | MM5Z4V7ST1G#C603326onsemi · SC-79 | onsemi | SC-79 | 85 | ₹13.12 · 85 in stock | View |
