DIODESDatasheet (PDF)

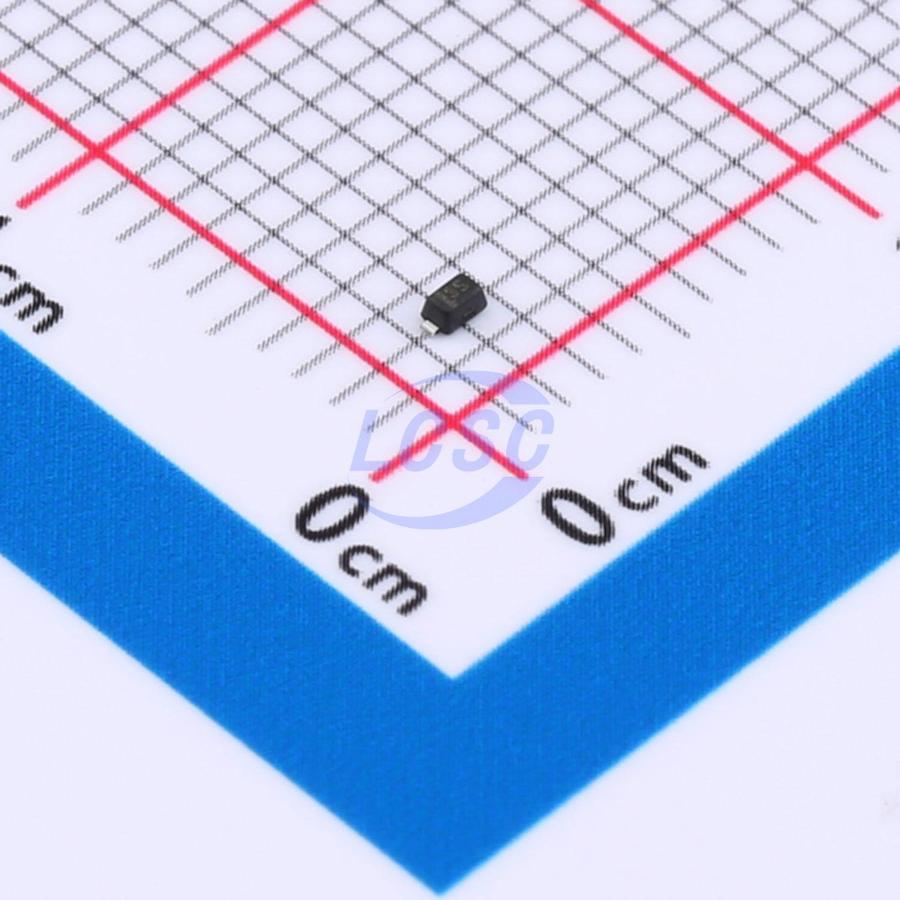

BZT585B6V2TQ-7
Zener Diode 6.2V 350mW Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE ZENER 6.2V 350mW SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- BZT585B6V2TQ-7
- Store part #
- C5378693
- Package / case
- SOD-523
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C5378693
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.01 | ₹65.05 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.14 | ₹4,070.00 |
| 3,000+ | ₹7.36 | ₹22,080.00 |
| 6,000+ | ₹6.97 | ₹41,820.00 |
5 × ₹13.01
₹65.05
excl. GST
₹76.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZT585B6V2TQ-7
₹65.05 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 350mW
- Reverse Leakage Current (Ir)
- 3uA@4V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 6.08V~6.32V
- Zener Voltage(Nom)
- 6.2V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Key features
- ±2.0% Tolerance on Breakdown Voltage
- Small, Low Profile Surface Mount Package
- Flat Lead Package Design for Low Profile and High Power Dissipation
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Suitable for automotive applications requiring specific change control and is AEC-Q101 qualified, is PPAP capable, and is manufactured in IATF16949:2016 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX585-B6V2,115#C426826Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | 38,490 | ₹4.86 · 38,490 in stock | View |
 | BZX585-B6V2,135#C550620Nexperia · SOD-523(SC-79) | Nexperia | SOD-523(SC-79) | On request | ₹5.20 · 0 in stock | View |
 | BZX584B6V2#C2910132JSCJ · SOD-523 | JSCJ | SOD-523 | 7,400 | ₹3.96 · 7,400 in stock | View |
 | BZX584B6V2#C968175YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 8,000 | ₹4.11 · 8,000 in stock | View |
 | BZX585B6V2#C51315229CBI · SOD-523 | CBI | SOD-523 | 2,600 | ₹1.97 · 2,600 in stock | View |
