NexperiaDatasheet (PDF)

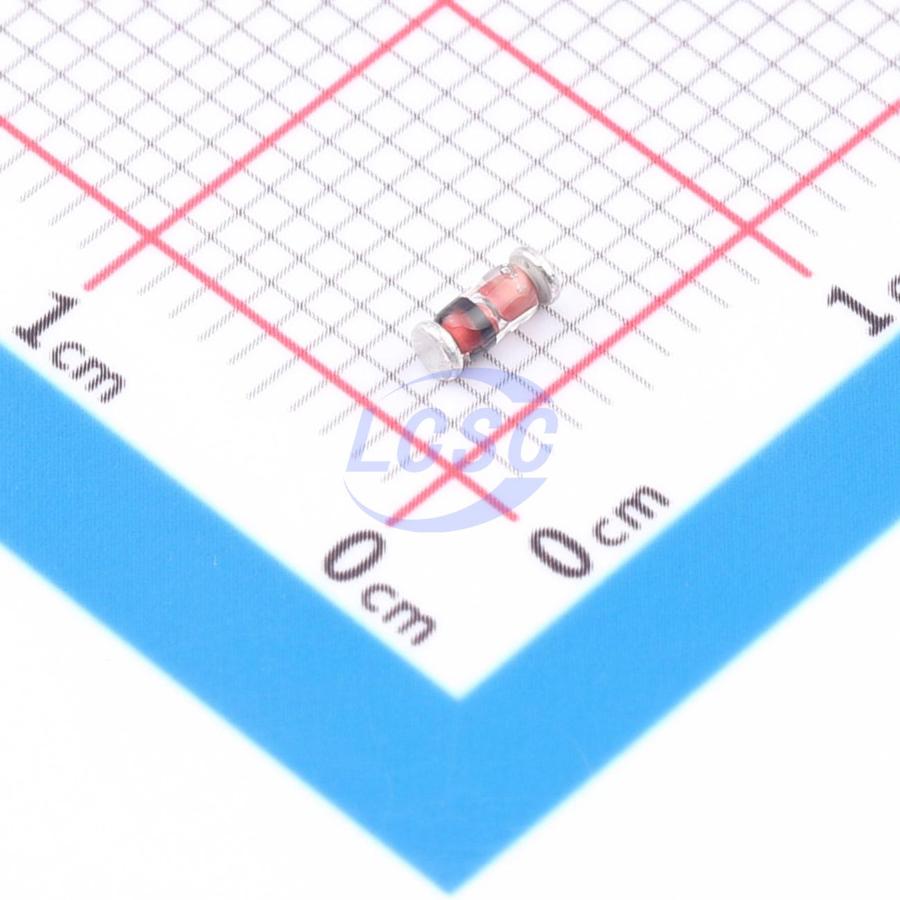

BZV55-B12,135
1 Independent 11.8V~12.2V 12V SOD-80C Single Zener Diodes RoHS
SOD-80CROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B12,135
- Store part #
- C550390
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C550390
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.95 | ₹89.75 |
| 50+ | ₹17.56 | ₹878.00 |
| 150+ | ₹17.29 | ₹2,593.50 |
| 500+ | ₹17.01 | ₹8,505.00 |
5 × ₹17.95
₹89.75
excl. GST
₹105.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-B12,135
₹89.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 11.8V~12.2V
- Zener Voltage(Nom)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-B12,115#C426807Nexperia · SOD-80C | Nexperia | SOD-80C | 1,890 | ₹8.23 · 1,890 in stock | View |
 | BZV55B12#C545385LGE · SOD-80 | LGE | SOD-80 | On request | ₹3.06 · 0 in stock | View |
 | TZMB12-GS08#C413426VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 720 | ₹9.70 · 720 in stock | View |
 | TCZM12B#C5357523Tak Cheong · LL-34 | Tak Cheong | LL-34 | 1,520 | ₹3.23 · 1,520 in stock | View |
 | ZMM12B#C5359983MSKSEMI · LL-34 | MSKSEMI | LL-34 | 1,980 | ₹3.66 · 1,980 in stock | View |
