NexperiaDatasheet (PDF)

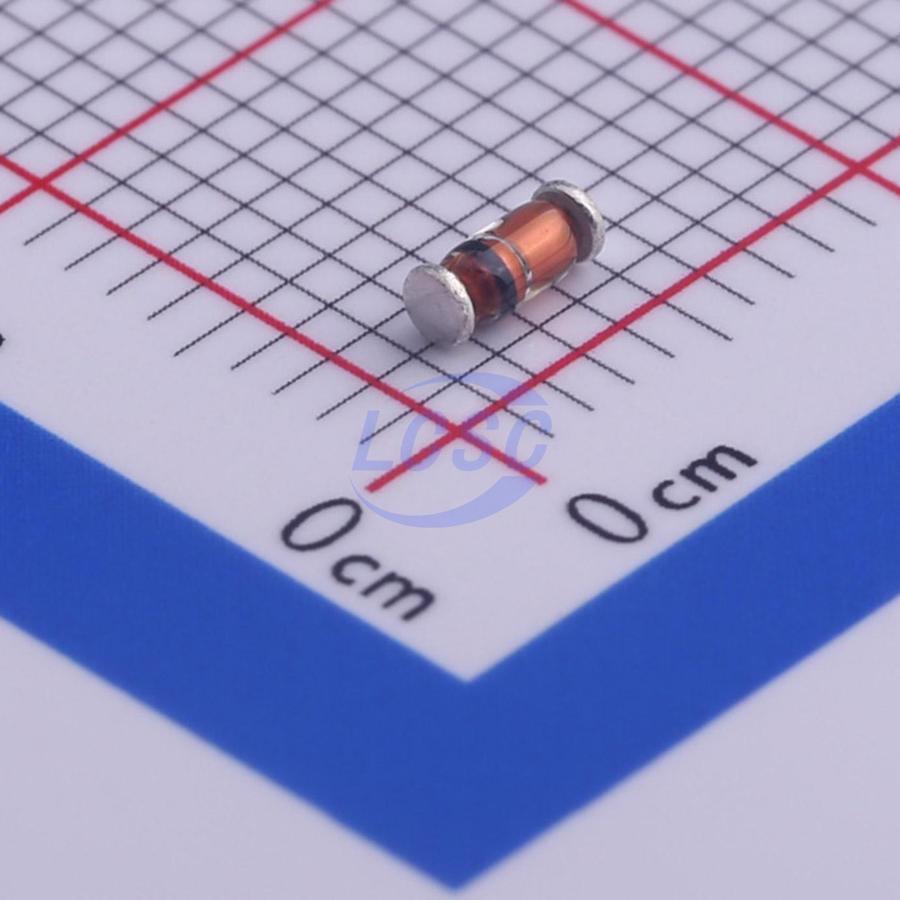

BZV55-B3V9,115
Zener Diode Independent 3.9V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 3.9V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B3V9,115
- Store part #
- C426808
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
885 in stock
#C426808
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.70 | ₹83.50 |
| 50+ | ₹13.16 | ₹658.00 |
| 150+ | ₹11.39 | ₹1,708.50 |
| 500+ | ₹10.07 | ₹5,035.00 |
| 2,500+ | ₹8.78 | ₹21,950.00 |
| 5,000+ | ₹8.26 | ₹41,300.00 |
5 × ₹16.70
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-B3V9,115
₹83.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 3uA@1V
- Impedance(Zzt)
- 90Ω
- Zener Voltage(Range)
- 3.82V~3.98V
- Zener Voltage(Nom)
- 3.9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TZMB3V9-GS08#C3732542VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 450 | ₹4.46 · 450 in stock | View |
 | BZM55B3V9-TR#C3733171VISHAY · SOD-80 | VISHAY | SOD-80 | 2,505 | ₹14.55 · 2,505 in stock | View |
 | ZMM3B9#C5359971MSKSEMI · LL-34 | MSKSEMI | LL-34 | 1,080 | ₹3.43 · 1,080 in stock | View |
 | BZV55C3V9#C545363LGE · SOD-80 | LGE | SOD-80 | 1,300 | ₹2.16 · 1,300 in stock | View |
 | ZMM3V9-MS#C2982191MSKSEMI · LL-34 | MSKSEMI | LL-34 | 750 | ₹1.98 · 750 in stock | View |
