NexperiaDatasheet (PDF)

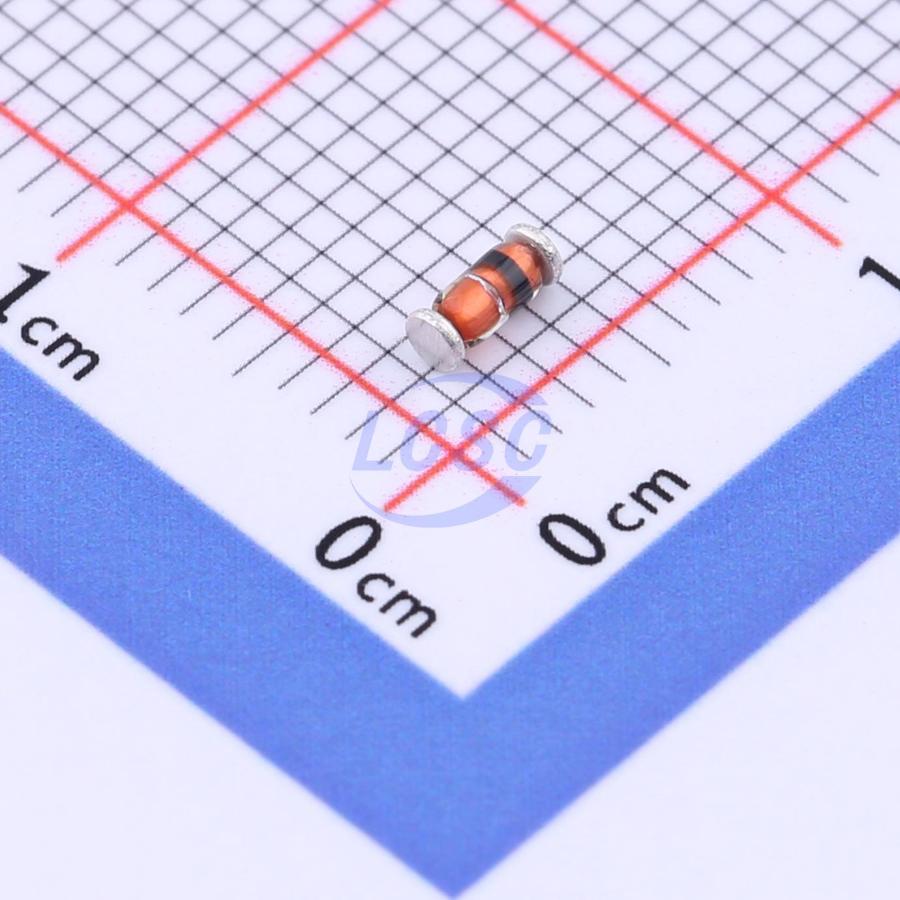

BZV55-B4V7,135
Zener Diode 1 Independent 4.7V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 4.7V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B4V7,135
- Store part #
- C550405
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C550405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.55 | ₹97.75 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹18.76 | ₹2,814.00 |
| 500+ | ₹18.44 | ₹9,220.00 |
5 × ₹19.55
₹97.75
excl. GST
₹115.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-B4V7,135
₹97.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 3uA@2V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 4.61V~4.79V
- Zener Voltage(Nom)
- 4.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.072 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C4V7,115#C128830Nexperia · SOD-80C | Nexperia | SOD-80C | 8,600 | ₹8.44 · 8,600 in stock | View |
 | BZV55B4V7#C545372LGE · SOD-80 | LGE | SOD-80 | 11,050 | ₹2.80 · 11,050 in stock | View |
 | BZM55C4V7-TR#C3734771VISHAY · SOD-80 | VISHAY | SOD-80 | 1,34,840 | ₹6.89 · 1,34,840 in stock | View |
 | TZMC4V7-GS08#C4555436VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 2,620 | ₹8.40 · 2,620 in stock | View |
 | ZMM4B7#C5359973MSKSEMI · LL-34 | MSKSEMI | LL-34 | 400 | ₹3.43 · 400 in stock | View |
