NexperiaDatasheet (PDF)

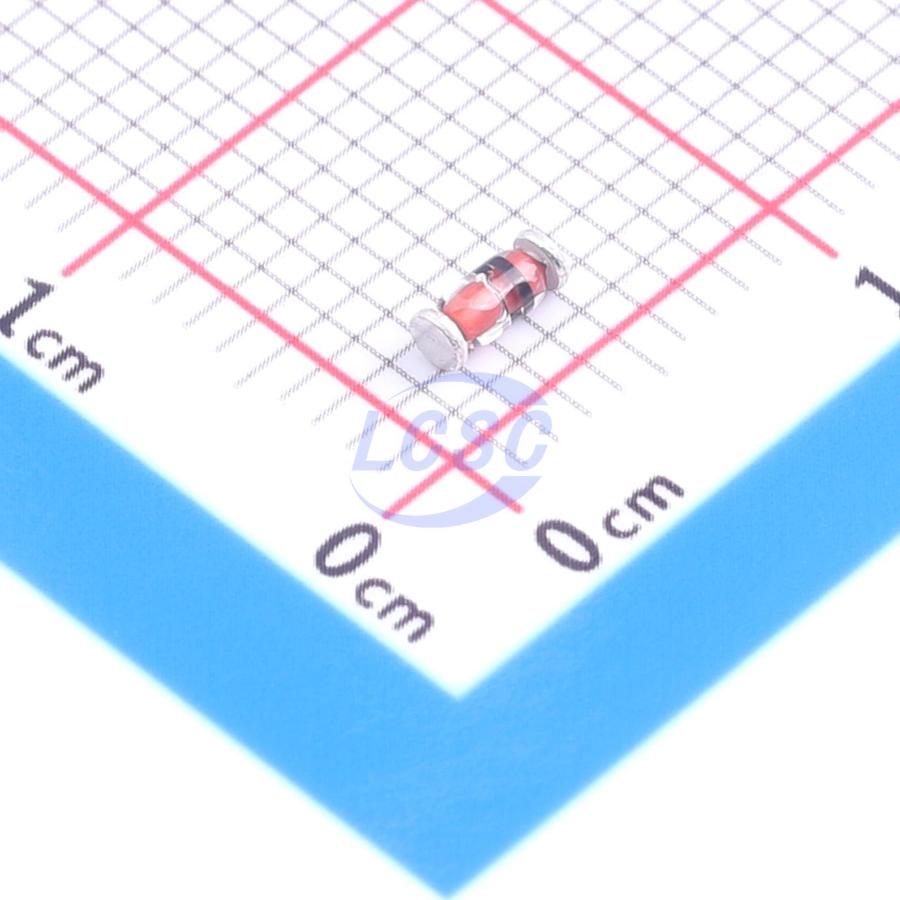

BZV55-B5V1,135
1 Independent 5V~5.2V 5.1V SOD-80C Single Zener Diodes RoHS
SOD-80CROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B5V1,135
- Store part #
- C5566322
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C5566322
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.75 | ₹123.75 |
| 50+ | ₹19.33 | ₹966.50 |
| 150+ | ₹17.01 | ₹2,551.50 |
| 500+ | ₹14.12 | ₹7,060.00 |
| 2,500+ | ₹12.82 | ₹32,050.00 |
| 5,000+ | ₹12.05 | ₹60,250.00 |
5 × ₹24.75
₹123.75
excl. GST
₹146.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-B5V1,135
₹123.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Zener Voltage(Range)
- 5V~5.2V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-B5V1,115#C426809Nexperia · SOD-80C | Nexperia | SOD-80C | 2,840 | ₹19.37 · 2,840 in stock | View |
 | TZMB5V1-GS08#C241948VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 4,960 | ₹5.98 · 4,960 in stock | View |
 | BZV55B5V1#C545327LGE · LL-34 | LGE | LL-34 | 25,650 | ₹2.65 · 25,650 in stock | View |
 | TLZ5V1B-GS08#C241934VISHAY · SOD-80 | VISHAY | SOD-80 | 3,700 | ₹4.47 · 3,700 in stock | View |
 | TLZ5V1B-GS18#C3735692VISHAY · SOD-80 | VISHAY | SOD-80 | 8,840 | ₹5.87 · 8,840 in stock | View |
