NexperiaDatasheet (PDF)
BZV55-B5V6,115

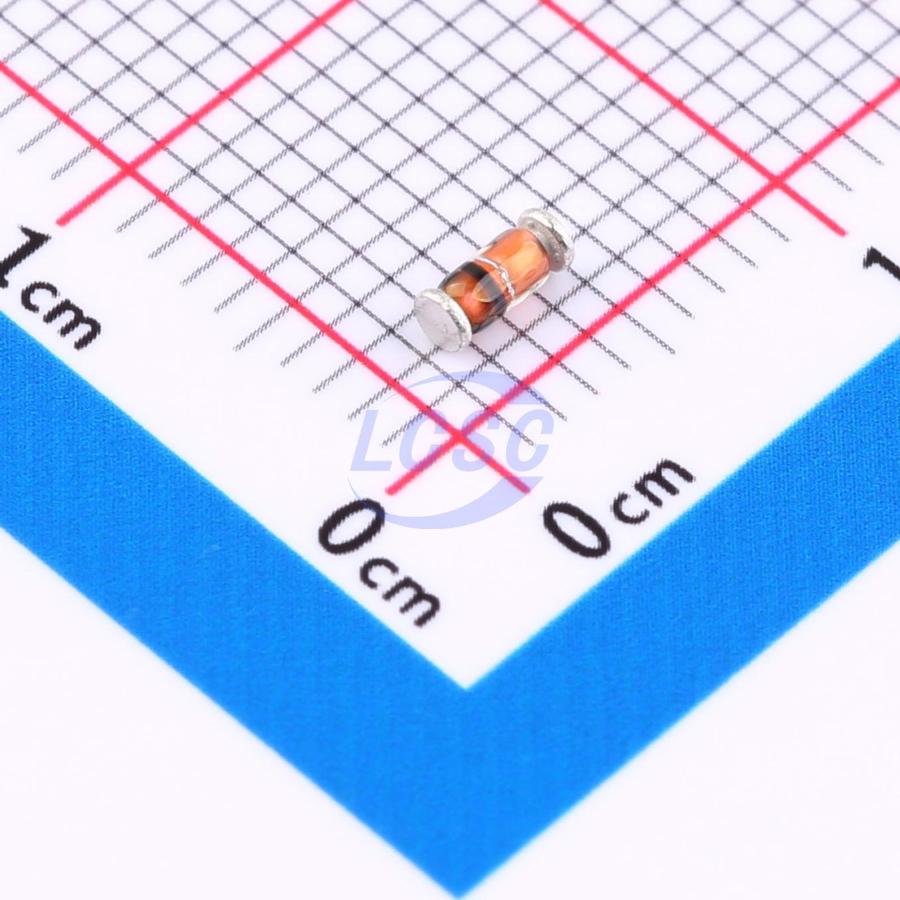

Zener Diode Independent 5.6V 400mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 5.6V 400mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-B5V6,115
- Store part #
- C282535
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
235 in stock
#C282535
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.97 | ₹64.85 |
| 50+ | ₹10.45 | ₹522.50 |
| 150+ | ₹9.21 | ₹1,381.50 |
| 500+ | ₹8.27 | ₹4,135.00 |
| 2,500+ | ₹6.23 | ₹15,575.00 |
| 5,000+ | ₹5.86 | ₹29,300.00 |
5 × ₹12.97
₹64.85
excl. GST
₹76.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-B5V6,115
₹64.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 1uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 5.49V~5.71V
- Zener Voltage(Nom)
- 5.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55B5V6#C545369LGE · SOD-80 | LGE | SOD-80 | On request | ₹2.49 · 0 in stock | View |
 | BZV55-C5V6,115#C183271Nexperia · SOD-80C | Nexperia | SOD-80C | 40,230 | ₹8.08 · 40,230 in stock | View |
 | ZMM5B6#C5359975MSKSEMI · LL-34 | MSKSEMI | LL-34 | 2,400 | ₹4.19 · 2,400 in stock | View |
 | BZV55C5V6#C545328LGE · LL-34 | LGE | LL-34 | 23,850 | ₹2.79 · 23,850 in stock | View |
 | ZMM55-C5V6_R1_10001#C268737PANJIT · MiniMELF | PANJIT | MiniMELF | 2,980 | ₹4.29 · 2,980 in stock | View |
