NexperiaDatasheet (PDF)

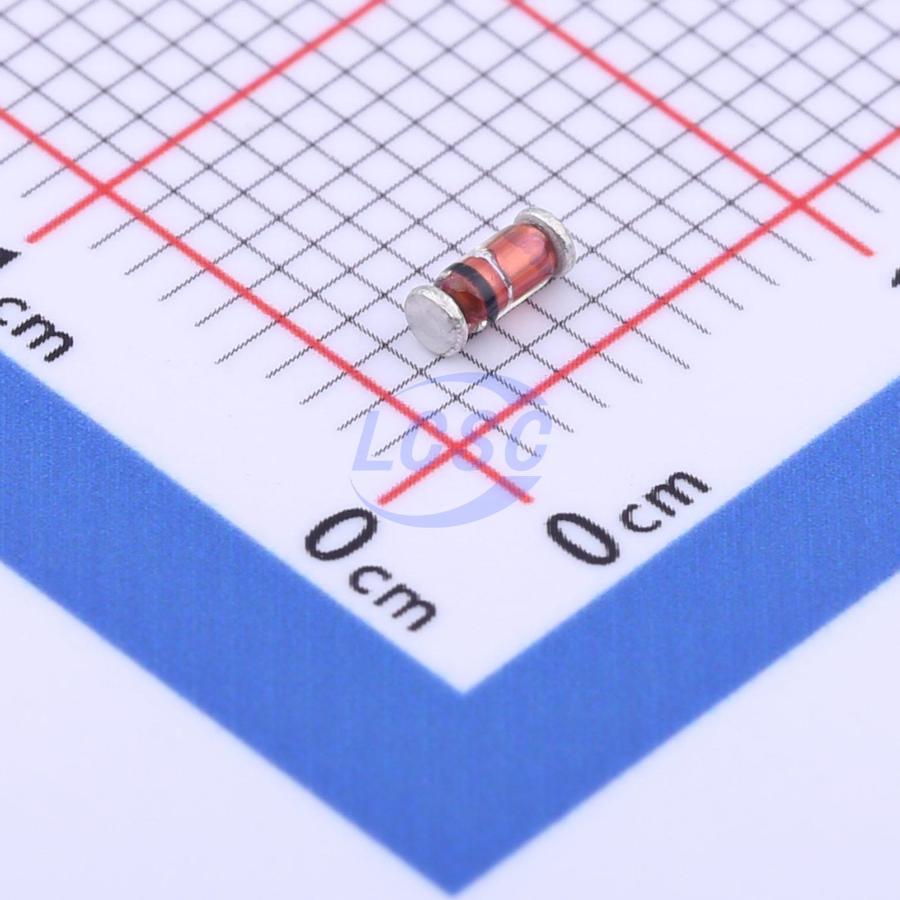

BZV55-C13,115
Zener Diode Independent 13V 400mW Surface Mount SOD-80C
SOD-80CROHS CompliantActive
DIODE ZENER 13V 400mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C13,115
- Store part #
- C128821
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,745 in stock
#C128821
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.10 | ₹100.50 |
| 50+ | ₹16.15 | ₹807.50 |
| 150+ | ₹14.18 | ₹2,127.00 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 2,500+ | ₹9.79 | ₹24,475.00 |
| 5,000+ | ₹9.19 | ₹45,950.00 |
5 × ₹20.10
₹100.50
excl. GST
₹118.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C13,115
₹100.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 100nA@8V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 12.4V~14.1V
- Zener Voltage(Nom)
- 13V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMM5243B#C2857215JSMSEMI · MiniMELF | JSMSEMI | MiniMELF | 1,600 | ₹1.51 · 1,600 in stock | View |
| ZMM13#C2857259JSMSEMI · LL-34 | JSMSEMI | LL-34 | 2,700 | ₹1.57 · 2,700 in stock | View | |
 | ZMM13PF-M#C7497490ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 350 | ₹2.34 · 350 in stock | View |
 | ZMM13V#C2891754YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | 3,500 | ₹1.15 · 3,500 in stock | View |
 | BZV55C13#C545370LGE · SOD-80 | LGE | SOD-80 | 3,180 | ₹2.13 · 3,180 in stock | View |
