BZV55-C22,135

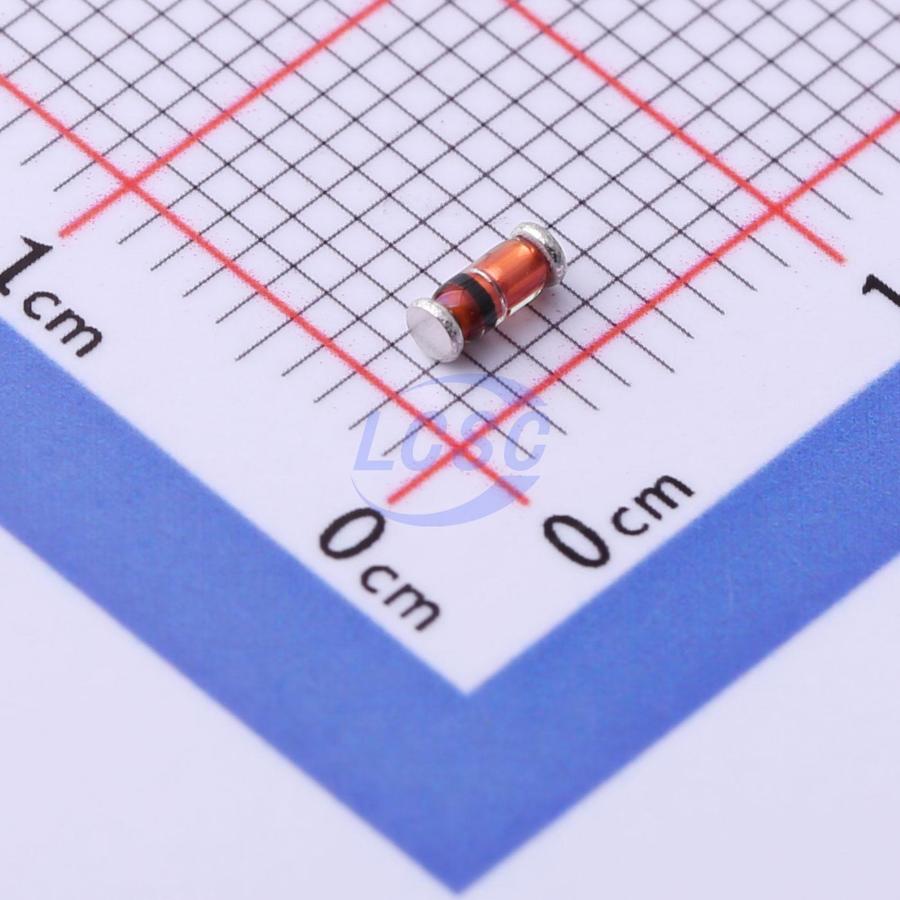

Zener Diode Independent 22V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 22V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C22,135
- Store part #
- C550422
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,470 in stock
#C550422
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.56 | ₹55.60 |
| 100+ | ₹4.38 | ₹438.00 |
| 300+ | ₹3.78 | ₹1,134.00 |
| 1,000+ | ₹3.33 | ₹3,330.00 |
| 5,000+ | ₹2.98 | ₹14,900.00 |
| 10,000+ | ₹2.80 | ₹28,000.00 |
10 × ₹5.56
₹55.60
excl. GST
₹65.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-C22,135
₹55.60 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@15.4V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.061 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
