NexperiaDatasheet (PDF)

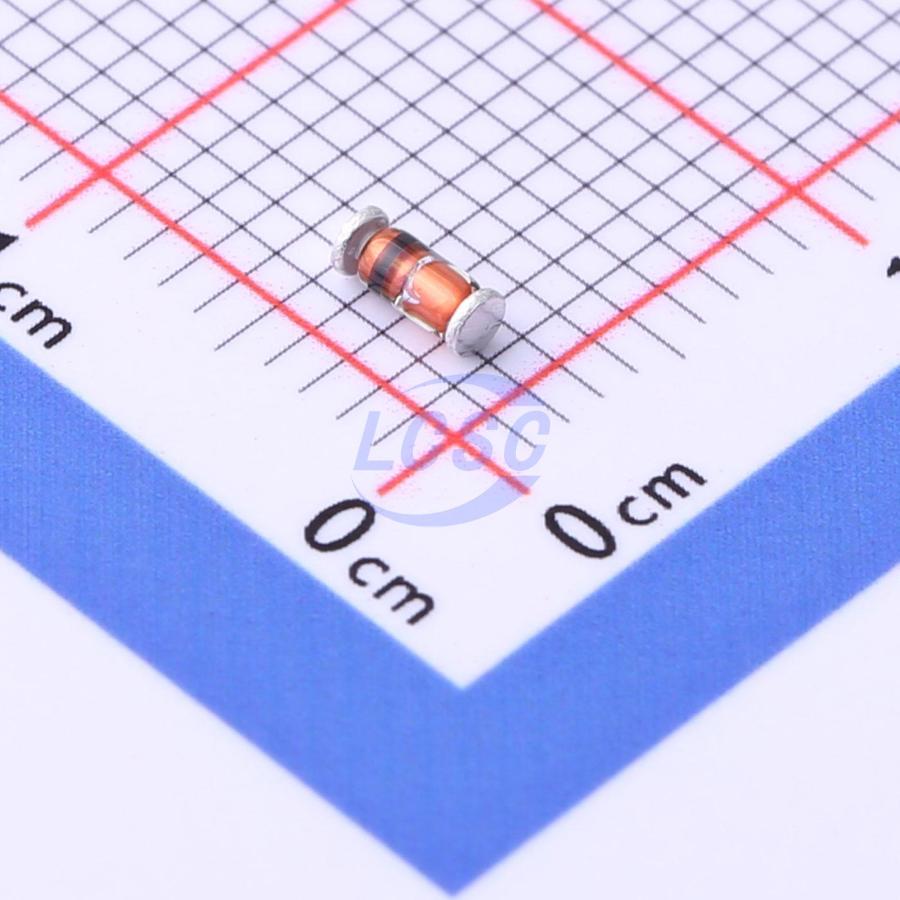

BZV55-C2V7,115
Zener Diode Independent 2.7V 400mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 2.7V 400mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C2V7,115
- Store part #
- C550427
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C550427
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.72 | ₹113.60 |
| 50+ | ₹17.81 | ₹890.50 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹13.08 | ₹6,540.00 |
| 2,500+ | ₹11.91 | ₹29,775.00 |
| 5,000+ | ₹11.21 | ₹56,050.00 |
5 × ₹22.72
₹113.60
excl. GST
₹134.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C2V7,115
₹113.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 400mW
- Reverse Leakage Current (Ir)
- 20uA@1V
- Impedance(Zzt)
- 75Ω
- Zener Voltage(Range)
- 2.5V~2.9V
- Zener Voltage(Nom)
- 2.7V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TZMC2V7-GS08#C3000806VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 1,690 | ₹8.47 · 1,690 in stock | View |
 | ZMM55-C2V7_R1_10001#C268735PANJIT · MiniMELF | PANJIT | MiniMELF | 360 | ₹3.65 · 360 in stock | View |
 | BZV55C2V7#C545366LGE · LL-34(Mini-MELF) | LGE | LL-34(Mini-MELF) | 11,900 | ₹2.25 · 11,900 in stock | View |
 | BZV55C2V7#C2892612YONGYUTAI · LL-34 | YONGYUTAI | LL-34 | On request | ₹1.64 · 0 in stock | View |
 | ZMM2V7#C2891738YONGYUTAI · MiniMELF(LL-34) | YONGYUTAI | MiniMELF(LL-34) | 200 | ₹1.52 · 200 in stock | View |
