NexperiaDatasheet (PDF)

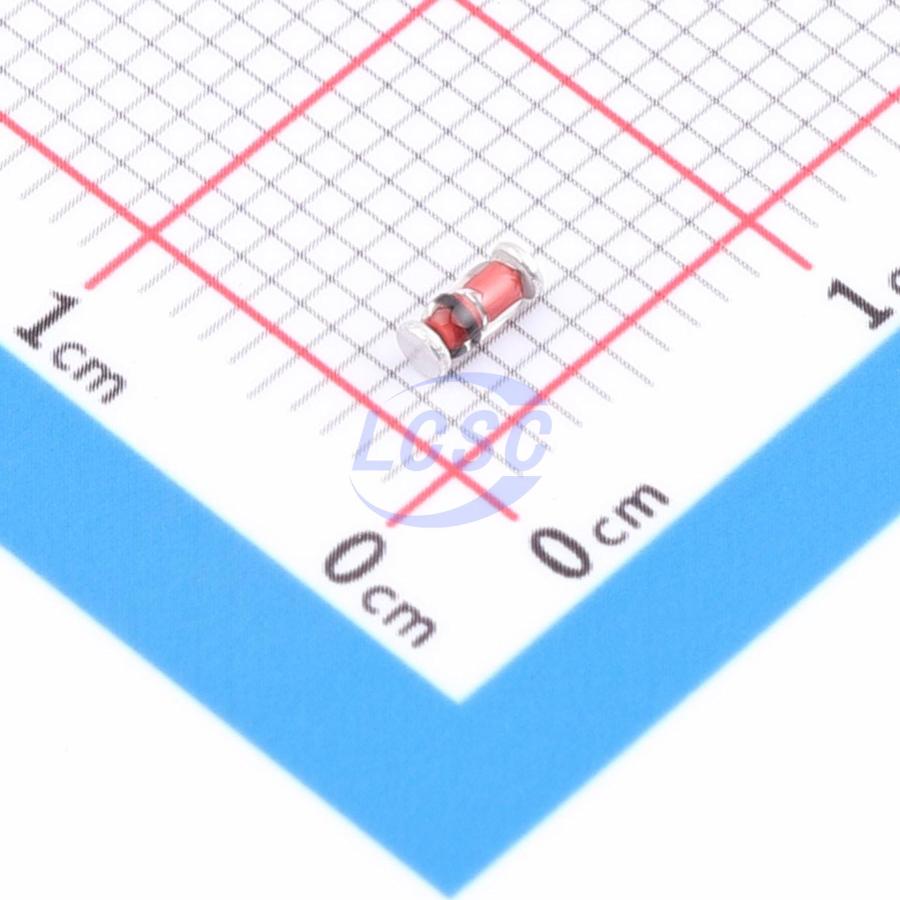

BZV55-C3V3,135
1 Independent 3.1V~3.5V 3.3V SOD-80C Single Zener Diodes RoHS
SOD-80CROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C3V3,135
- Store part #
- C550433
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
770 in stock
#C550433
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.54 | ₹82.70 |
| 50+ | ₹12.98 | ₹649.00 |
| 150+ | ₹11.21 | ₹1,681.50 |
| 500+ | ₹9.88 | ₹4,940.00 |
| 2,500+ | ₹8.81 | ₹22,025.00 |
| 5,000+ | ₹8.28 | ₹41,400.00 |
5 × ₹16.54
₹82.70
excl. GST
₹97.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-C3V3,135
₹82.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.1V~3.5V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C3V3,115#C128828Nexperia · SOD-80C | Nexperia | SOD-80C | 19,330 | ₹7.50 · 19,330 in stock | View |
 | ZMM55C3V3#C3040453FUXINSEMI · LL-34 | FUXINSEMI | LL-34 | 2,800 | ₹2.73 · 2,800 in stock | View |
 | TZMC3V3-GS08#C413436VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 3,860 | ₹10.23 · 3,860 in stock | View |
 | BZV55-B3V3,115#C550402Nexperia · SOD-80C | Nexperia | SOD-80C | 7,235 | ₹15.08 · 7,235 in stock | View |
 | BZV55C3V3#C545323LGE · SOD-80 | LGE | SOD-80 | 34,130 | ₹2.49 · 34,130 in stock | View |
