NexperiaDatasheet (PDF)

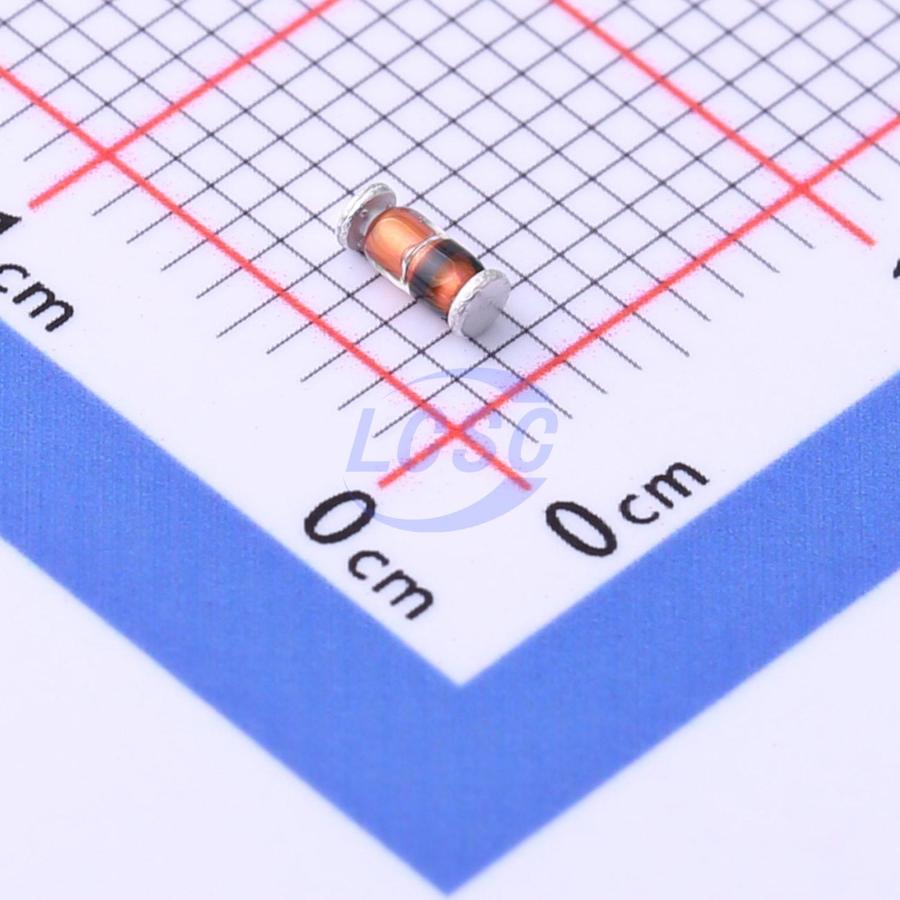

BZV55-C47,115
Zener Diode 47V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 47V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C47,115
- Store part #
- C550436
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C550436
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.27 | ₹82.70 |
| 100+ | ₹6.67 | ₹667.00 |
| 300+ | ₹5.87 | ₹1,761.00 |
| 2,500+ | ₹4.99 | ₹12,475.00 |
| 5,000+ | ₹4.51 | ₹22,550.00 |
| 10,000+ | ₹4.27 | ₹42,700.00 |
10 × ₹8.27
₹82.70
excl. GST
₹97.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
BZV55-C47,115
₹82.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@32.9V
- Impedance(Zzt)
- 170Ω
- Zener Voltage(Range)
- 44V~50V
- Zener Voltage(Nom)
- 47V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.058 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZMM5261B#C2857197JSMSEMI · MiniMELF | JSMSEMI | MiniMELF | 2,400 | ₹1.94 · 2,400 in stock | View |
 | BZV55C47#C545359LGE · SOD-80 | LGE | SOD-80 | 16,360 | ₹3.51 · 16,360 in stock | View |
 | BZV55-B47,115#C550403Nexperia · MiniMELF | Nexperia | MiniMELF | 140 | ₹6.01 · 140 in stock | View |
 | ZMM47V#C41781635YONGYUTAI · MiniMELF(LL-34) | YONGYUTAI | MiniMELF(LL-34) | 2,450 | ₹2.13 · 2,450 in stock | View |
 | ZMM47PF-M#C7497501ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 150 | ₹2.49 · 150 in stock | View |
