NexperiaDatasheet (PDF)

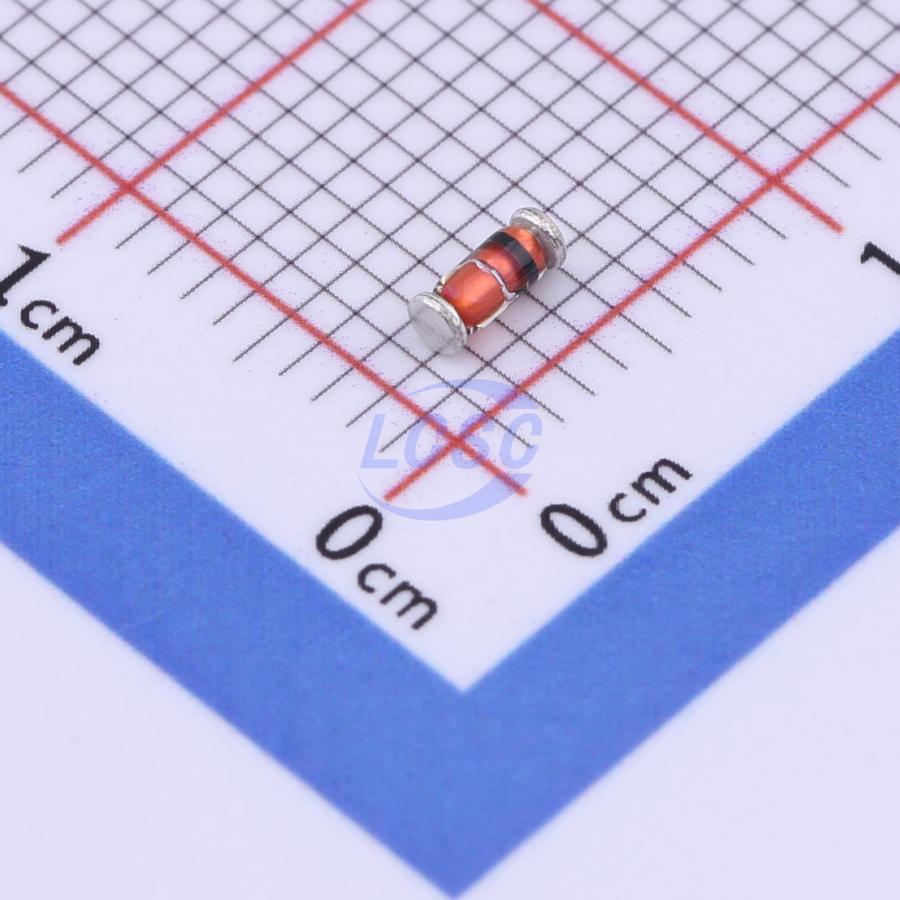

BZV55-C5V1,135
Zener Diode Independent 5.1V 500mW Surface Mount SOD-80C
SOD-80CROHS3 CompliantActive
DIODE ZENER 5.1V 500mW SOD-80C
- Manufacturer
- Nexperia
- Manufacturer part #
- BZV55-C5V1,135
- Store part #
- C550442
- Package / case
- SOD-80C
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
585 in stock
#C550442
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.36 | ₹76.80 |
| 50+ | ₹14.99 | ₹749.50 |
| 150+ | ₹14.75 | ₹2,212.50 |
| 500+ | ₹14.50 | ₹7,250.00 |
5 × ₹15.36
₹76.80
excl. GST
₹90.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
BZV55-C5V1,135
₹76.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
Low- power voltage regulator diodes in small hermetically sealed glass SOD80C Surface- Mounted Device (SMD) packages. The diodes are available in the normalized E24 ± 2% (BZV55- B) and approximately ± 5% (BZV55- C) tolerance range. The series consists of 37 types with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Non- repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 500mW
- Two tolerance series: ± 2% and ± 5%
- Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
- Low differential resistance
- Small hermetically sealed glass SMD package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C5V1,115#C128831Nexperia · SOD-80C | Nexperia | SOD-80C | 4,640 | ₹10.56 · 4,640 in stock | View |
 | TZMC5V1-GS18#C145431VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 11,560 | ₹5.42 · 11,560 in stock | View |
 | ZMM55C5V1#C2844165FUXINSEMI · LL-34(SOD-80) | FUXINSEMI | LL-34(SOD-80) | 13,950 | ₹2.82 · 13,950 in stock | View |
 | TZMC5V1-GS08#C413438VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 270 | ₹6.58 · 270 in stock | View |
 | BZV55C5V1#C545326LGE · SOD-80 | LGE | SOD-80 | 1,12,600 | ₹2.74 · 1,12,600 in stock | View |
