NexperiaDatasheet (PDF)

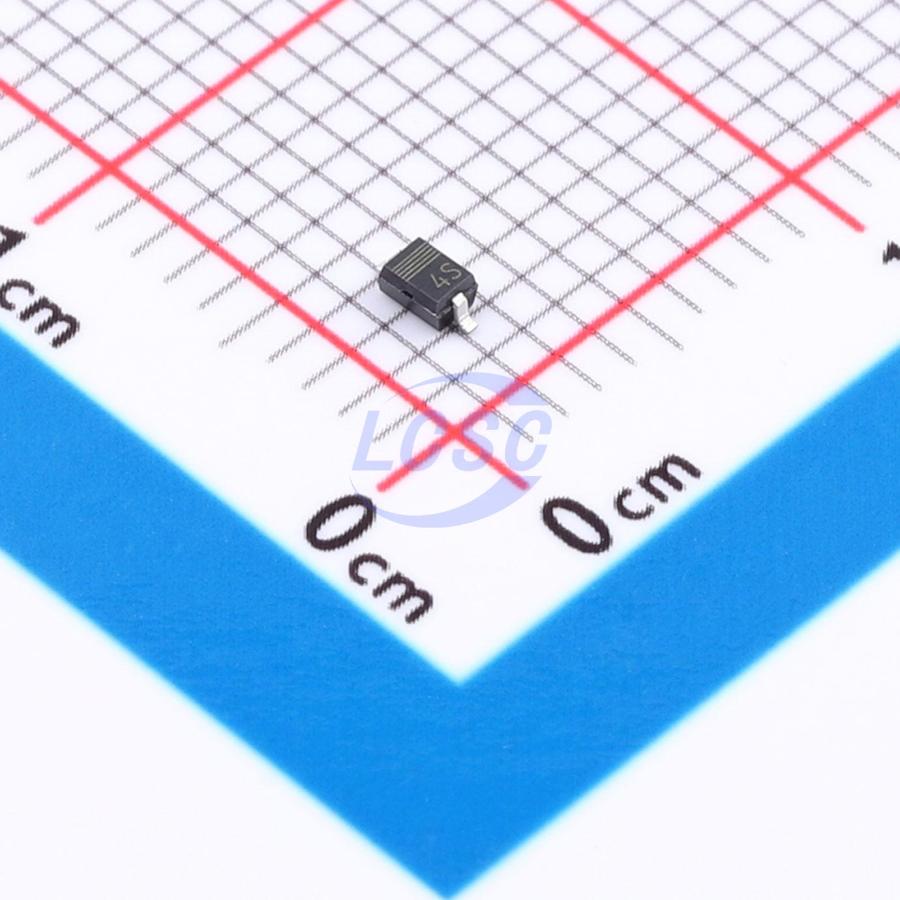

BZX384-A36-QX
1 Independent 35.64V~36.36V 36V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-A36-QX
- Store part #
- C7508029
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C7508029
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹117.72 | ₹117.72 |
| 10+ | ₹94.49 | ₹944.90 |
| 30+ | ₹82.75 | ₹2,482.50 |
| 100+ | ₹71.24 | ₹7,124.00 |
| 500+ | ₹64.30 | ₹32,150.00 |
| 1,000+ | ₹60.61 | ₹60,610.00 |
1 × ₹117.72
₹117.72
excl. GST
₹138.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-A36-QX
₹117.72 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±1%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@25.2V
- Zener Voltage(Range)
- 35.64V~36.36V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-B36,115#C550554Nexperia · SOD-323 | Nexperia | SOD-323 | 17,860 | ₹3.02 · 17,860 in stock | View |
 | BZX384-B36-QX#C7508087Nexperia · SOD-323 | Nexperia | SOD-323 | 3,000 | ₹6.39 · 3,000 in stock | View |
 | MM3Z36VST1G#C891609onsemi · SOD-323 | onsemi | SOD-323 | 1,165 | ₹18.65 · 1,165 in stock | View |
 | SZMM3Z36VST1G#C894527onsemi · SOD-323 | onsemi | SOD-323 | 1,915 | ₹18.39 · 1,915 in stock | View |
 | MM3Z36BW#C4749046Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,600 | ₹2.62 · 1,600 in stock | View |
