NexperiaDatasheet (PDF)

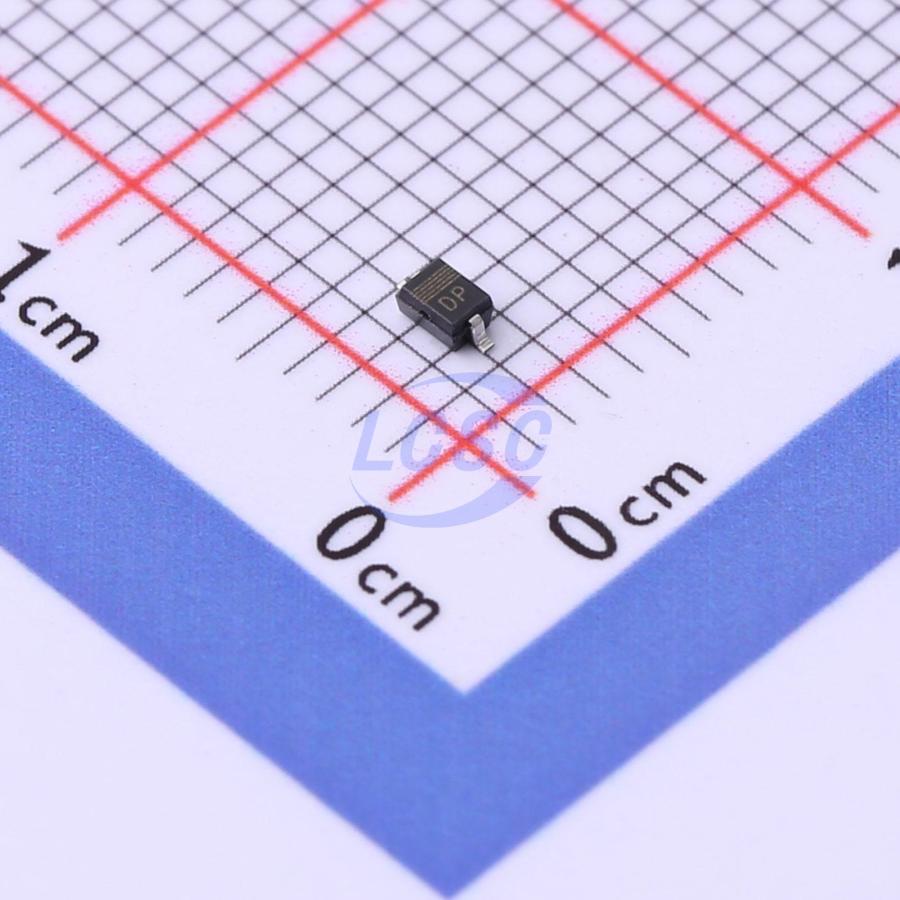

BZX384-C39,115
Zener Diode Independent 39V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 39V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C39,115
- Store part #
- C454973
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C454973
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.28 | ₹62.80 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.35 | ₹20,100.00 |
| 9,000+ | ₹3.15 | ₹28,350.00 |
10 × ₹6.28
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C39,115
₹62.80 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@27.3V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 37V~41V
- Zener Voltage(Nom)
- 39V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.021 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C39F#C550583Nexperia · SOD-323 | Nexperia | SOD-323 | 95 | ₹19.91 · 95 in stock | View |
 | BZX384-C39-QX#C7508126Nexperia · SOD-323 | Nexperia | SOD-323 | 2,990 | ₹7.29 · 2,990 in stock | View |
 | MM3Z39W#C2856995JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 1,550 | ₹2.54 · 1,550 in stock | View |
 | MM3Z39W#C4749044Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,300 | ₹2.41 · 2,300 in stock | View |
 | MM3Z39#C51883343Huixin · SOD-323 | Huixin | SOD-323 | 3,000 | ₹5.24 · 3,000 in stock | View |
