NexperiaDatasheet (PDF)

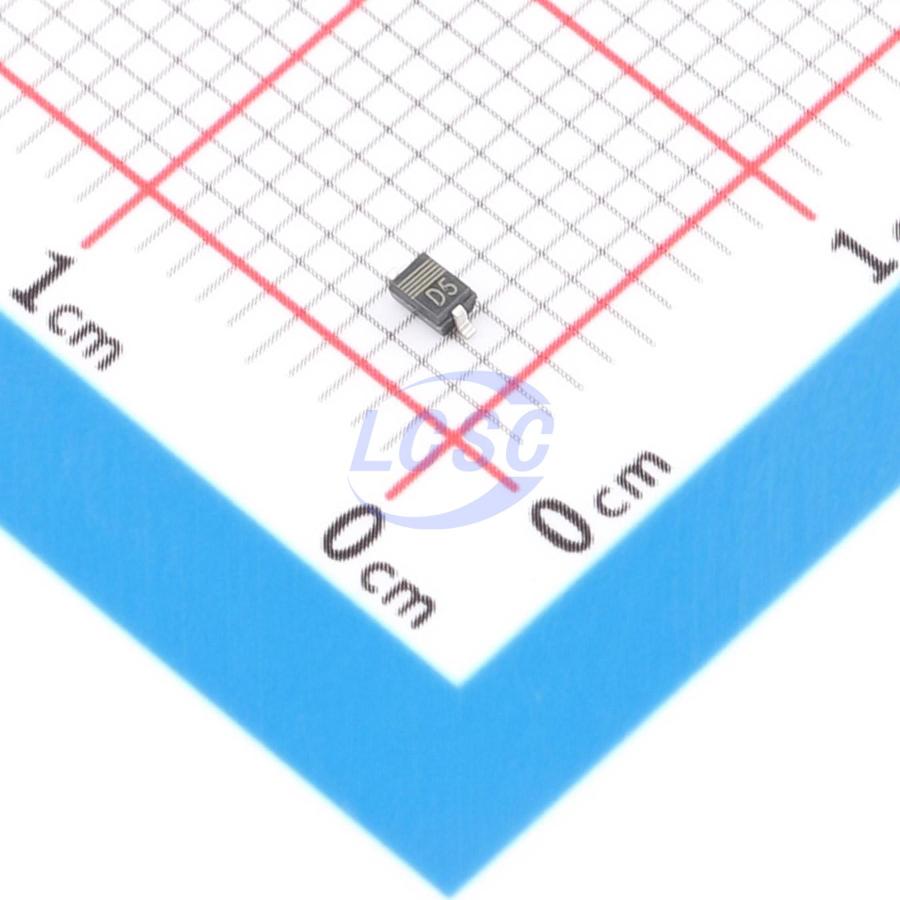

BZX384-C5V1-QX
Zener Diode 1 Independent 4.8V~5.4V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 4.8V~5.4V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C5V1-QX
- Store part #
- C7508137
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,005 in stock
#C7508137
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.38 | ₹141.90 |
| 50+ | ₹22.19 | ₹1,109.50 |
| 150+ | ₹19.54 | ₹2,931.00 |
| 500+ | ₹16.23 | ₹8,115.00 |
| 3,000+ | ₹14.76 | ₹44,280.00 |
| 6,000+ | ₹13.88 | ₹83,280.00 |
5 × ₹28.38
₹141.90
excl. GST
₹167.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C5V1-QX
₹141.90 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 2uA@2V
- Zener Voltage(Range)
- 4.8V~5.4V
- Zener Voltage(Nom)
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z5V1W#C2763563Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 500 | ₹1.93 · 500 in stock | View |
 | MM3Z5V1W#C2856974JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 1,350 | ₹2.75 · 1,350 in stock | View |
 | BZT52C5V1SQ#C2942528YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 1,660 | ₹4.54 · 1,660 in stock | View |
 | MM3Z5V1#C50581504GOODWORK · SOD-323 | GOODWORK | SOD-323 | 200 | ₹1.80 · 200 in stock | View |
 | BZX384-C5V1,115#C72346Nexperia · SOD-323 | Nexperia | SOD-323 | 12,770 | ₹9.91 · 12,770 in stock | View |
