NexperiaDatasheet (PDF)

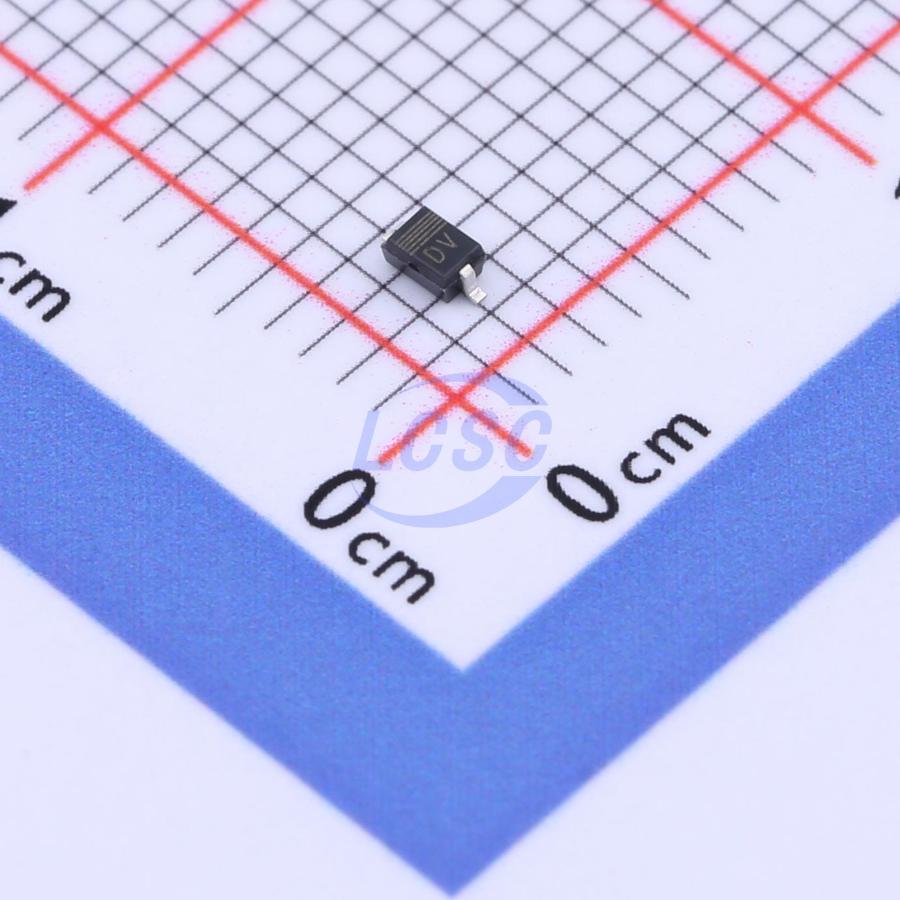

BZX384-C62,115
Zener Diode Independent 62V 300mW Surface Mount SOD-323
SOD-323ROHS3 CompliantActive
DIODE ZENER 62V 300mW SOD-323
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C62,115
- Store part #
- C503419
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,200 in stock
#C503419
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.96 | ₹79.20 |
| 200+ | ₹3.07 | ₹614.00 |
| 600+ | ₹2.57 | ₹1,542.00 |
| 3,000+ | ₹2.28 | ₹6,840.00 |
| 9,000+ | ₹2.01 | ₹18,090.00 |
| 21,000+ | ₹1.88 | ₹39,480.00 |
20 × ₹3.96
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C62,115
₹79.20 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@43.4V
- Impedance(Zzt)
- 80Ω
- Zener Voltage(Range)
- 58V~66V
- Zener Voltage(Nom)
- 62V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.022 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM3Z62W#C2857000JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 2,450 | ₹2.54 · 2,450 in stock | View |
 | MM3Z62#C382958Jingdao Microelectronics · SOD-323 | Jingdao Microelectronics | SOD-323 | 1,200 | ₹1.96 · 1,200 in stock | View |
 | MM3Z62W#C4749033Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 2,100 | ₹2.41 · 2,100 in stock | View |
 | MM3Z62VT1G#C891638onsemi · SOD-323 | onsemi | SOD-323 | 35 | ₹20.37 · 35 in stock | View |
 | BZX384-B62,115#C550566Nexperia · SOD-323 | Nexperia | SOD-323 | 3,000 | ₹4.83 · 3,000 in stock | View |
