NexperiaDatasheet (PDF)

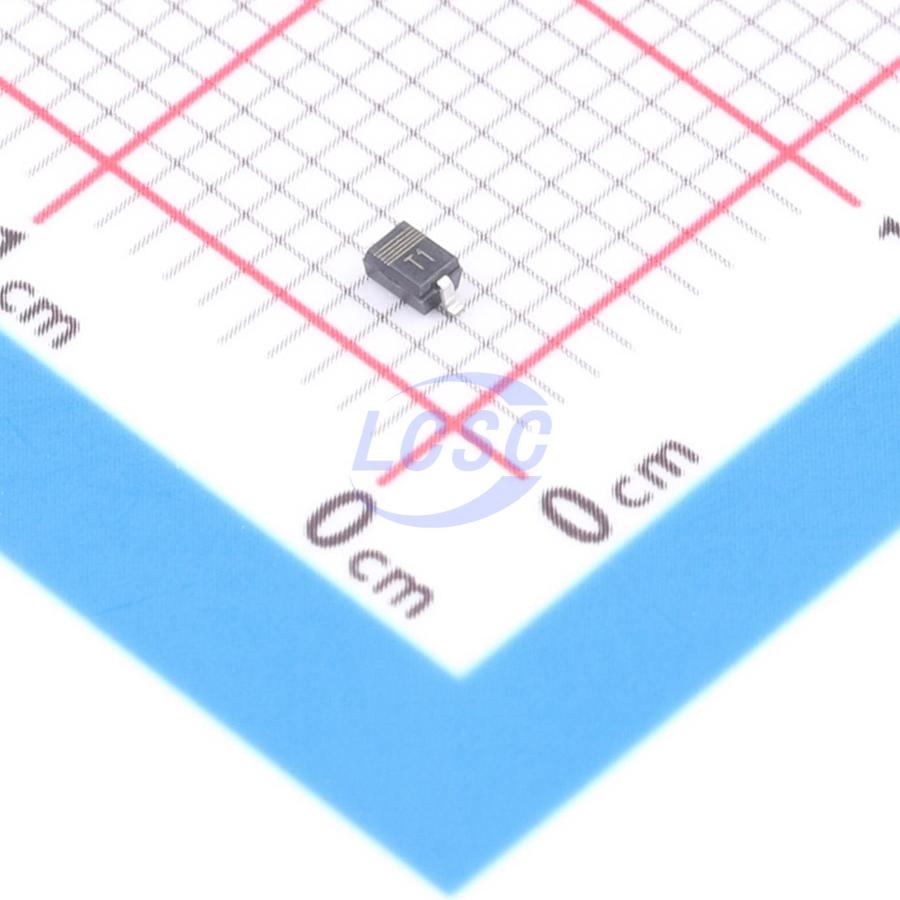

BZX384-C6V2-QX
1 Independent 5.8V~6.6V 6.2V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX384-C6V2-QX
- Store part #
- C7508141
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,940 in stock
#C7508141
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.69 | ₹56.90 |
| 100+ | ₹4.47 | ₹447.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 3,000+ | ₹3.40 | ₹10,200.00 |
| 6,000+ | ₹3.04 | ₹18,240.00 |
| 9,000+ | ₹2.86 | ₹25,740.00 |
10 × ₹5.69
₹56.90
excl. GST
₹67.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX384-C6V2-QX
₹56.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 3uA@4V
- Zener Voltage(Range)
- 5.8V~6.6V
- Zener Voltage(Nom)
- 6.2V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Low- power voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package. The diodes are available in the normalized E24 ± 1% (BZX384- A), ± 2% (BZX384- B) and approximately ± 5% (BZX384- C) tolerance range. The series includes 37 breakdown voltages with nominal working voltages from 2.4 V to 75 V.
Applications
- General regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Three tolerance series: ± 1%, ± 2% and approximately ± 5%
- Working voltage range: nominal 2.4 V to 75 V (E24 range)
- Non-repetitive peak reverse power dissipation: ≤ 40 W
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C6V2,115#C282537Nexperia · SOD-323 | Nexperia | SOD-323 | 7,340 | ₹3.56 · 7,340 in stock | View |
 | MM3Z6V2W#C2856976JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 4,150 | ₹2.63 · 4,150 in stock | View |
 | MM3Z6V2W#C2962424Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,250 | ₹1.85 · 1,250 in stock | View |
 | SZMM3Z6V2T1G#C152500onsemi · SOD-323 | onsemi | SOD-323 | 1,900 | ₹3.36 · 1,900 in stock | View |
 | MM3Z6V2T1G#C393369onsemi · SOD-323 | onsemi | SOD-323 | 11,480 | ₹5.24 · 11,480 in stock | View |
