NexperiaDatasheet (PDF)

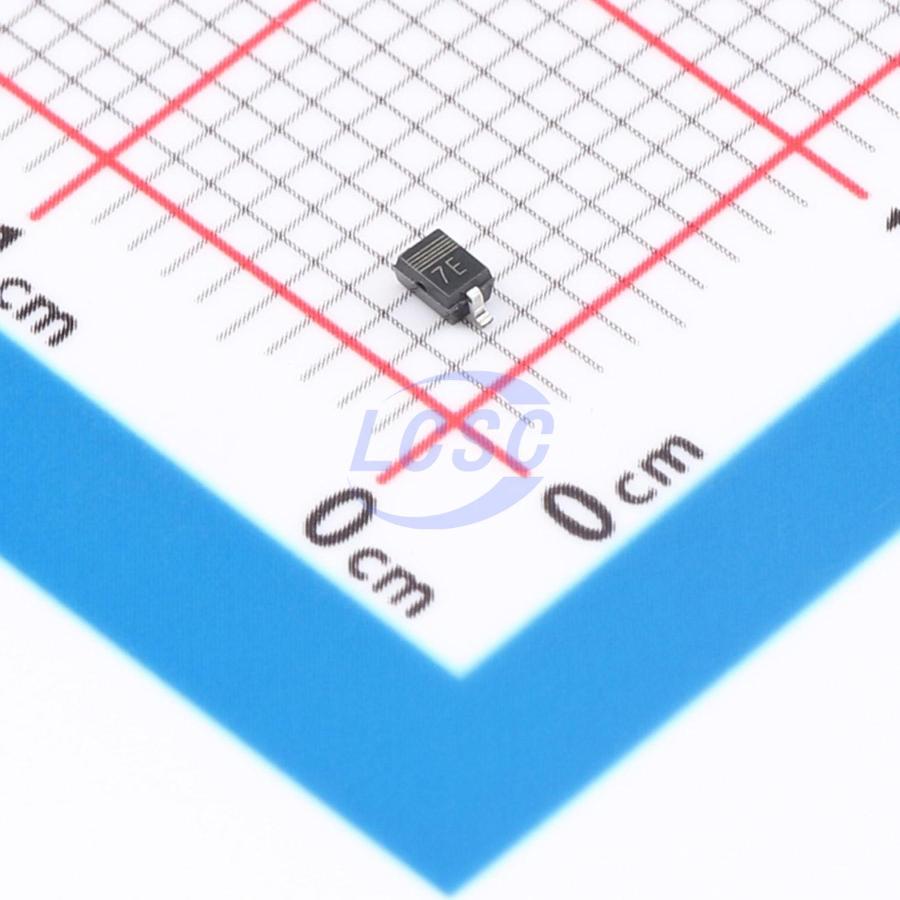

BZX38450-C6V2-QX
1 Independent 5.89V~6.51V 6.2V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX38450-C6V2-QX
- Store part #
- C7223878
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C7223878
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.95 | ₹124.75 |
| 50+ | ₹24.41 | ₹1,220.50 |
| 150+ | ₹24.07 | ₹3,610.50 |
| 500+ | ₹23.71 | ₹11,855.00 |
5 × ₹24.95
₹124.75
excl. GST
₹147.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX38450-C6V2-QX
₹124.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 1uA@5V
- Impedance(Zzt)
- 10Ω
- Zener Voltage(Range)
- 5.89V~6.51V
- Zener Voltage(Nom)
- 6.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
Low- current voltage regulator diodes in a small SOD323 (SC- 76) Surface- Mounted Device (SMD) plastic package.
Applications
- Low-current general regulation functions
Key features
- Total power dissipation: ≤ 300 mW
- Tolerance series: approximately ± 5%
- Working voltage range: nominal 1.8 V to 10 V
- Specified at a low test current (50 μA), ideal for low bias and portable battery-powered applications
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX384-C6V2,115#C282537Nexperia · SOD-323 | Nexperia | SOD-323 | 7,340 | ₹3.56 · 7,340 in stock | View |
 | MM3Z6V2#C2832599CBI · SOD-323 | CBI | SOD-323 | 1,600 | ₹2.04 · 1,600 in stock | View |
 | MM3Z6V2W#C2856976JSMSEMI · SOD-323W | JSMSEMI | SOD-323W | 4,150 | ₹2.63 · 4,150 in stock | View |
 | MM3Z6V2W#C2962424Jingdao Microelectronics · SOD-323W | Jingdao Microelectronics | SOD-323W | 1,250 | ₹1.85 · 1,250 in stock | View |
 | MM3Z6V2#C746275HT(Shenzhen Jinyu Semicon) · SOD-323 | HT(Shenzhen Jinyu Semicon) | SOD-323 | 3,000 | ₹2.22 · 3,000 in stock | View |
